Tool Holder Devices

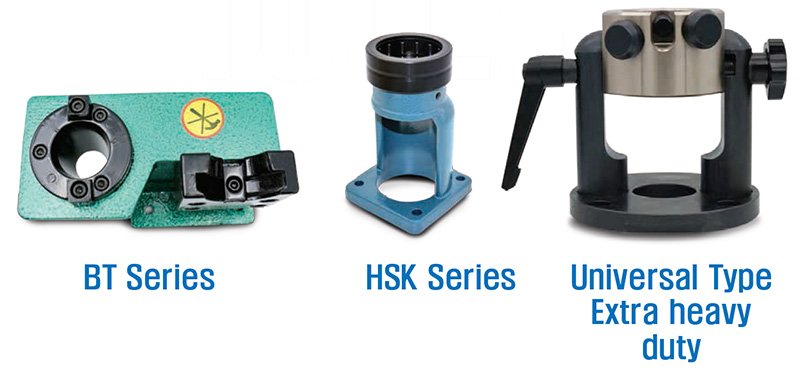

DOLPHIN Tool Holder Device or Tool Boys, are made from heavy duty CAST Iron to provide Robust support while adaptor assembly. Provide for BT, HSK series Adaptors.

Model
BT-30 / 40 / 50
HSK - 50 / 63 / 100
UNIVERSAL TYPE (BT, SK, CAT, NT - 40, HSK 63)

Download PDF

Clamping Kits

DOLPHIN Clamping Kits consist 58 pcs sets of various Diameter and Nut sizes, heat treated and black oxide finish. This comes in a Mould type Briefcase packing for easy handling.

Kit Includes
24 PC: STUDS
6 PC: T-NUTS
4 PC : COUPLING NUTS
6 PC : FLANGE NUTS
6 PC: STEP CLAMPS
12PC: STEP BLOCKS

Model	Table Slot	Stud Sizes
M10	12	10-1.5P
M12	14	12-1.75P
M14	16	14-2.0P
M16	18	16-2.0P
M18	20	18-2.5P
M20	22	20-2.5P

Download PDF

CNC Tooling Trolleys

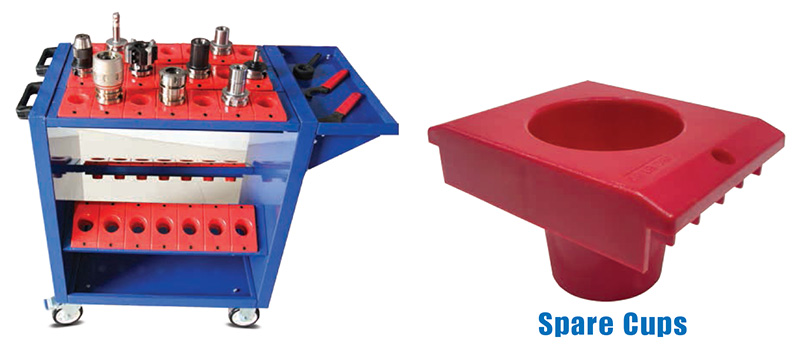

DOLPHIN CNC Trolleys, are offered in BT 30 /40/ 50 and HSK series. These are compact, have a wheel base and can be assembled with ease. Spare cups are available.

Model
BT40 / BT50 / HSK 63	35 SLOTS

Download PDF

CNC SPINDLE CLEANER

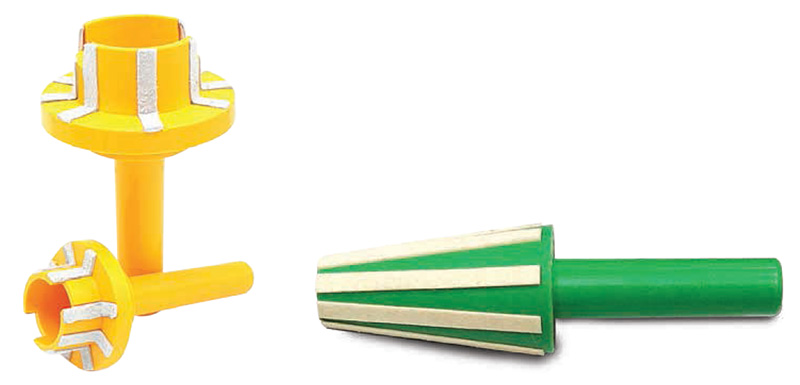

DOLPHIN CNC Spindle cleaners are available in BT and HSK series. With ABS body and wipers made from Cotton material which avoid and damage to the spindle.

CNC Spindle Cleaner
BT 30 / BT 40 / BT 50	HSK 63 / HSK 100

Download PDF

Lock Down Machine Vices

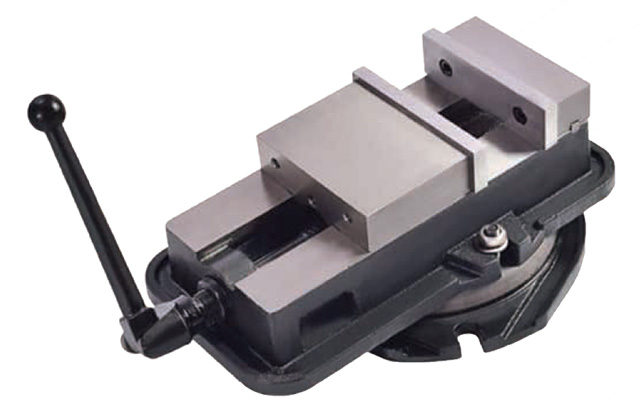

DOLPHIN Lock down Machine Vice come with option of Swivel base. Made from Heavy duty Cast Iron.

Jaw Width	Max Open	Jaw Height	Weight
6"	160MM	45	34KG
6"	200MM	50	46KG
6" Swiwel Base	160MM	45	37KG
6" Swiwel Base	200MM	50	51KG

Download PDF

Hydraulic Vice

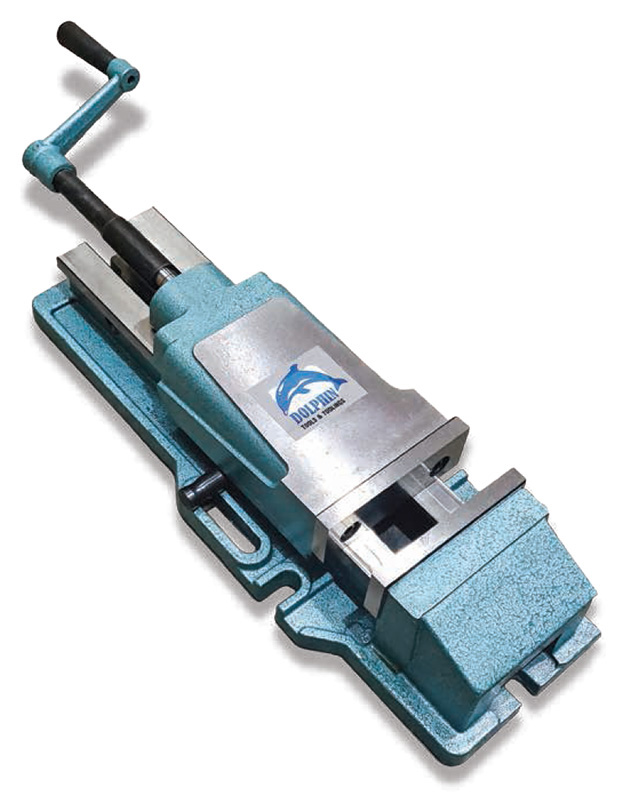

DOLPHIN Hydraulic Vice have a Robust Cast Iron construction for VMC usage. Jaws are hardened and ground. Care should be taken while applying excess force on the crank as that can easily damage the Hydraulic booster cylinder. Please refer to DOLPHIN Hydraulic vice user video.

Jaw Width	Opening	H	Max Clamp Force	Weight
6"	200MM	48	4500KGF	45KG
6"	300MM	52	4500KGF	60KG

Download PDF

Precision Modular Vice

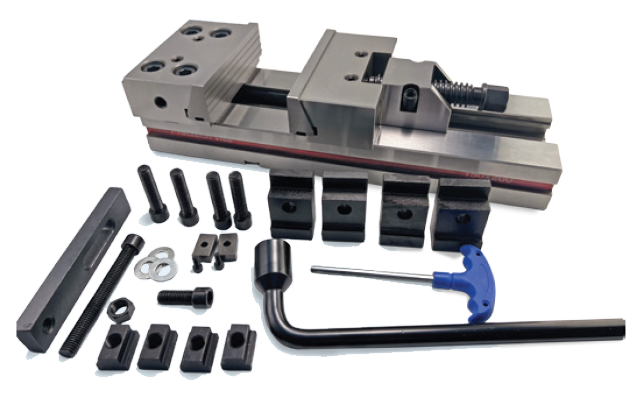

DOLPHIN Precision Modular Vice offer high clamp force, high accuracy. clamping options and serrated jaws.

JAW WIDTH	OPENING	H	MAX CLAMP FORCE	WEIGHT
150 MM	200 MM	50	3500 kg	30 kg
150 MM	200 MM	50	3500 kg	30 kg

Download PDF

Tool Holder Tray

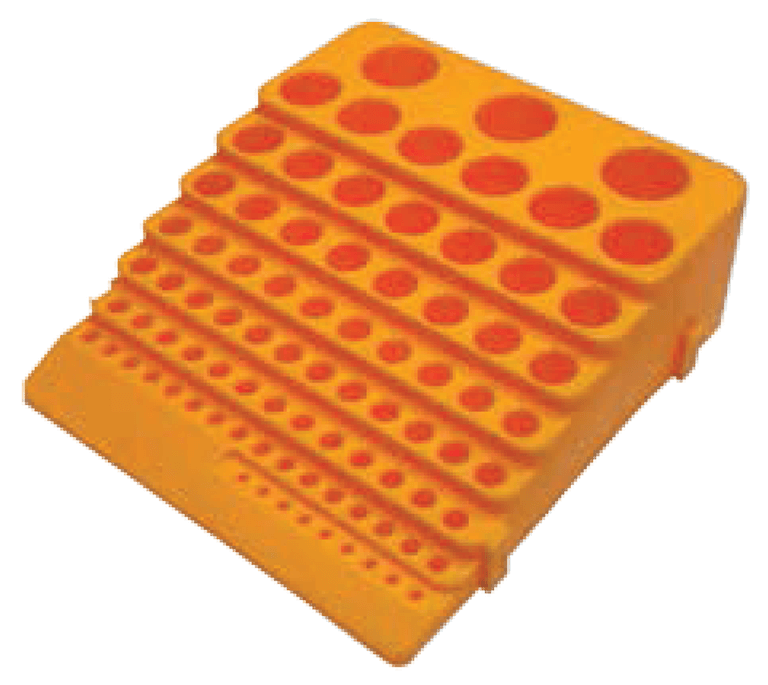

DOLPHIN Tool Holder trays are ideal to hold various spindle tools, collets and keep them safely and easy to access when needed.

Suitable to hold Endmills / Drills / Collets, etc.

Model	DIA
62 holes	6 - 42 MM

Download PDF

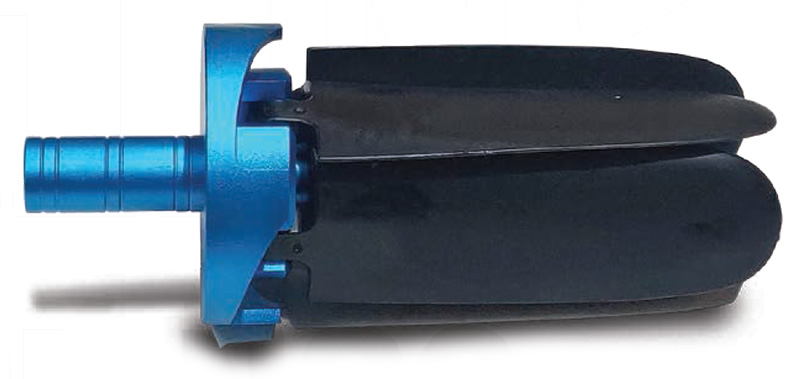

Cnc Scrap Cleaner Fan

DOLPHIN CNC Scrap cleaner fan are handy to clean up the machine bed of burrs. These fans can be fitted into Collets and operate as a fan at RPM of 1500-2000 + and help clear up the machine bed is seconds.
