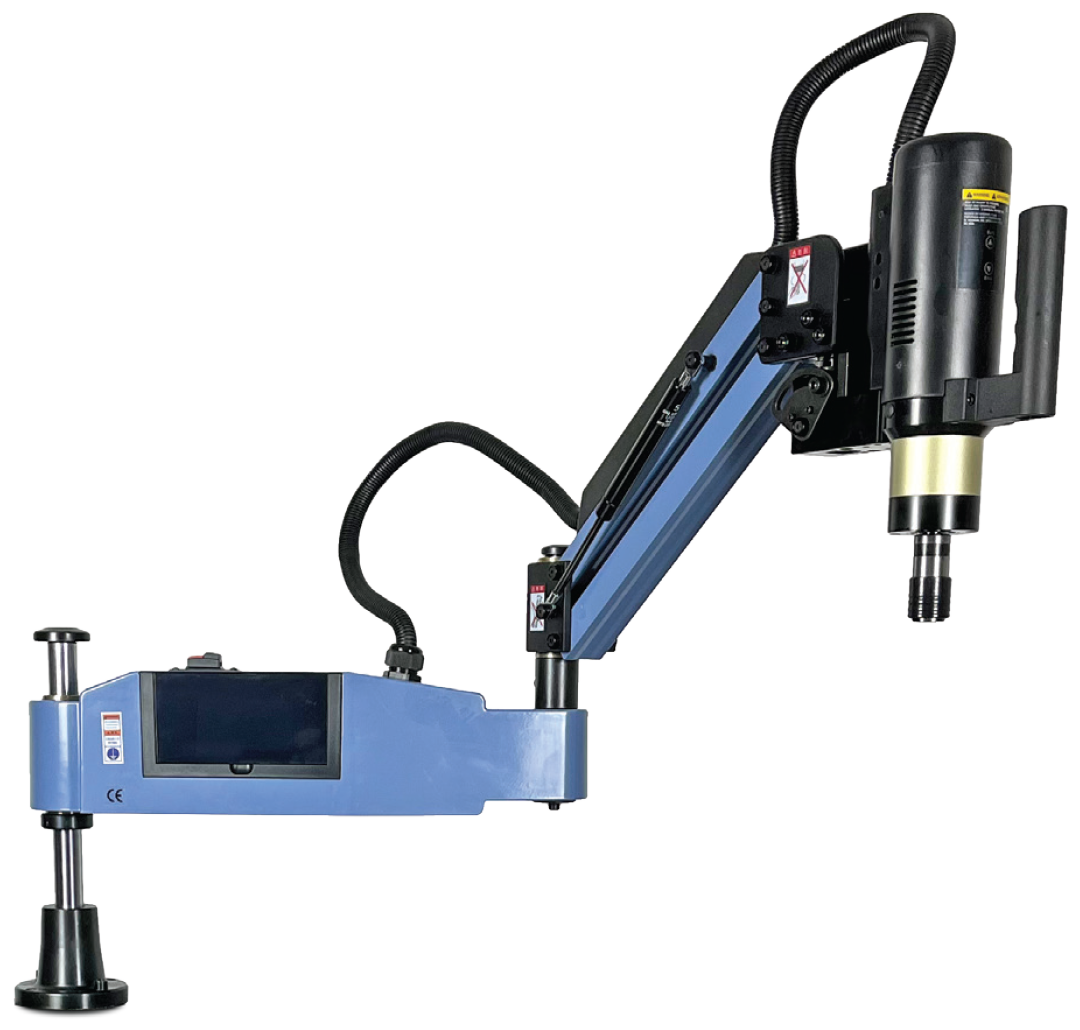

Electric (Servo) Tapping Machine

Electric (Servo) Tapping Machine
DOLPHIN Electric (Servo) Tapping Machine provide smooth, efficient tapping. Easy to operate and option to mount easily, makes it ideal for your tapping applications. Supplied with complete range of Tapping collets. Online demonstration is available.
Tapping Range M3- M16 M5 -M 30
Tapping Collet Dolphin GT -12 Dolphin GT -24
Input Volatge 220 V/ 50HZ 220 V/ 50HZ
Rated Power 600 w 1200 w
Working Radius 1045 mm 1180 mm
Max Speed 375 RPM 375 RPM
Dimension 70X66X22 CM 81X77X22 CM
Weight 31 KG 53 KG

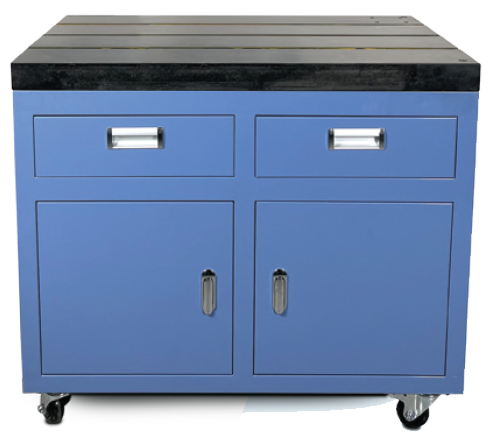

Tapping Table

Tapping Table
DOLPHIN Tapping Tables are used to mount Tapping machines and provide a solid base for tapping applications. Table surface is Ground finish. Slots are provided on the table surface to hold the job and to mount the Tapping machine.
SIZE M3- M16 M5 -M 30
Dimension 80x50x75 cm 90x60x80 cm
Weight 70 KG 90 KG
Material Cast Iron
Table Top Grinding Finish

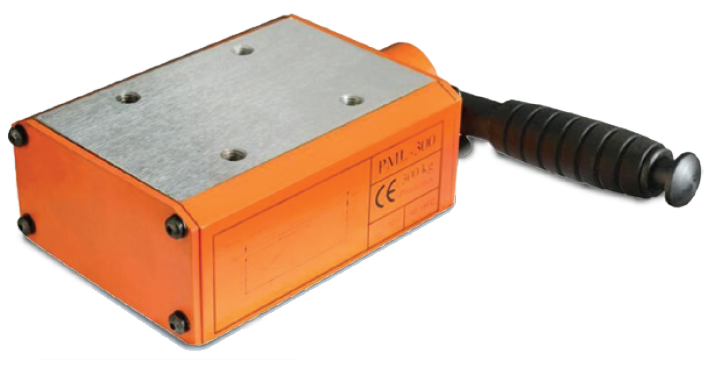

Magnetic Clamp (For Onsite Tapping)

Magnetic Clamp (For Onsite Tapping)
DOLPHIN Magnetic clamp for Tapping machine, have a heavy duty magnetic clamp force, to enable to, mount the Tapping machines onto the job itself and act as a portable base.
SIZE M3- M16 M5 -M 30
Force 300 KGS 1000 KGS

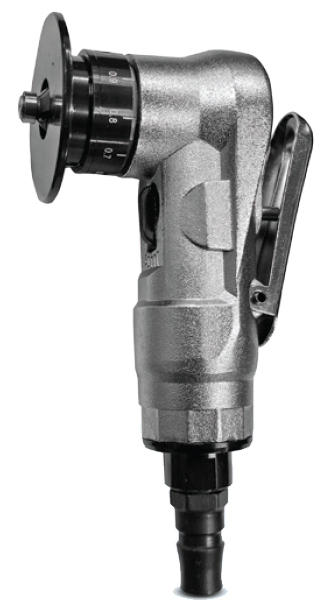

Pneumatic Hand Champfering Machine

Pneumatic Hand Champfering Machine
DOLPHIN Pneumatic and hand Champfering machine are easy to use and handy for Champfering applications. Can support small to large contact areas.
Idle Speed Insert Capacity Aperapure Rate
30000 RPM TCMT08 C0.1- C1.5 >7mm 8000.00

Grinding / Resharpening Machine for Tools

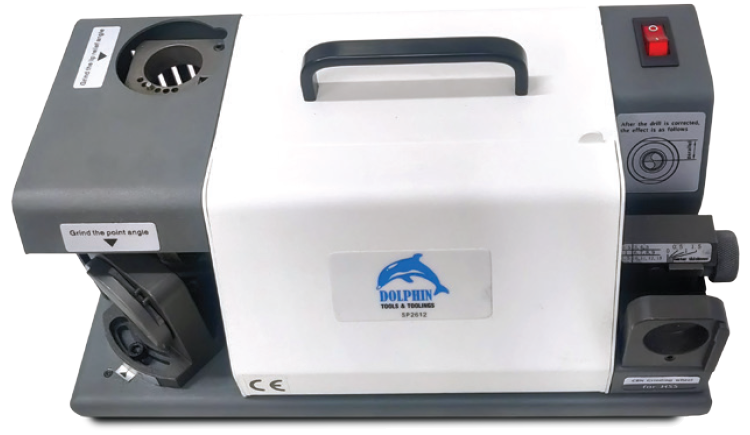

Drill Grinding Machine (Suitable For Hss, Carbide Both)

Drill Grinding Machine (Suitable For Hss, Carbide Both)
DOLPHIN Drill Grinding machines offer high efficiency drill grinding for HSS and Carbide Drill grinding. Easy to use, portable. Operation video demo is available.
RANGE 3-14 MM 3-20 MM
Spare Wheel 5000.00 6000.00
POINT ANGLE 90*-140° 95*-145°
Power AC,220V AC,220V
Motor 120W/4800RPM 180W/4800RPM
Dimension CMS 36X21X19 43X22X21
Weight 9KG 14KG

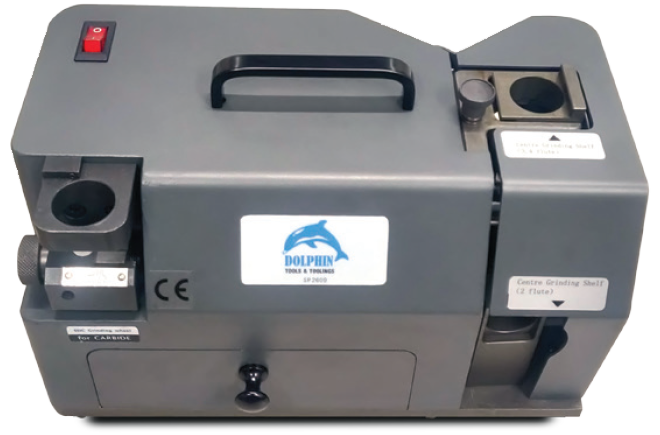

Endmill Grinding Machine (Carbide Endmill Only)

Endmill Grinding Machine (Carbide Endmill Only)
DOLPHIN Endmill Grinding Machine are suitable to grind 2 / 3 / 4 Fluted Carbide endmills. Easy to use, portable. Operation Video demo is available.
RANGE 4-14 MM 3-20 MM
Spare Wheel 5,200.00 5,200.00
POINT ANGLE 90*-140° 95*-145°
Power AC,220V AC,220V
Motor 180W/4800RPM 180W/4800RPM
Dimension CMS 35X23X24 35X23X24
Weight 15KG 16KG
