Cutting Tools

Tungsten Carbide Rotary Burrs

PDF icon Download PDF

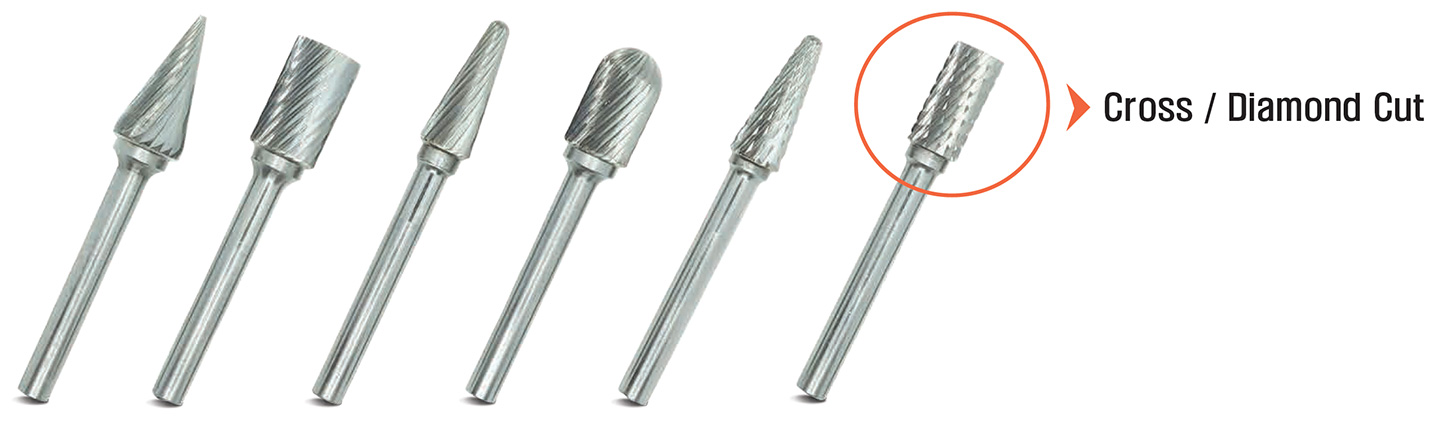

DOLPHIN Tungsten carbide Rotary burs are offered in a variety of Shapes: Conical, Ball, Cylindrical, Tree shape, etc In various diameters as per customer specifications. High grade Virgin Carbide Blanks are used with Silver Brazing to ensure high production output.
Tungsten Carbide Rotary Burrs

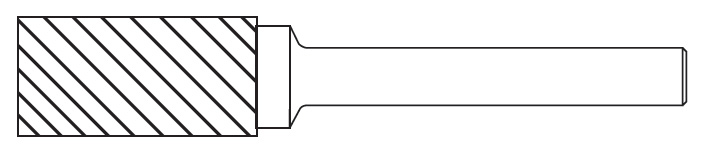

Cylindrical

Tungsten Carbide Rotary Burrs - Cylindrical
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
C-1 C-1 D 4 14 6
C-2 C-2 D 6 15 6
C-3 C-3 D 8 19 6
C-4 C-4 D 10 20 6
C-5 C-5 D 12 20 6
C-6 C-6 D 16 25 6
MC-1   3 15 3

Tree Radius

Tungsten Carbide Rotary Burrs - Tree Radius
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
TB-1 TB-1 D 6 15 6
TB-2 TB-2 D 10 20 6
TB-3 TB-3 D 12 25 6

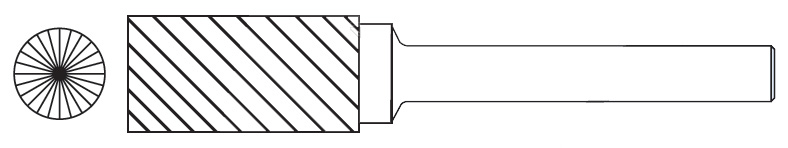

Cylindrical End Cut

Tungsten Carbide Rotary Burrs - Cylindrical End Cut
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
CE-3 CE-3 D 8 19 6
CE-4 CE-4 D 10 20 6
CE-5 CE-5 D 12 20 6

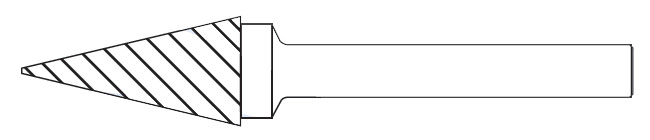

Conical

Tungsten Carbide Rotary Burrs - Conical
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
A-1 A-1 D 6 20 6
A-2 A-2 D 10 20 6
A-3 A-3 D 12 25 6
MA-1   3 10 3

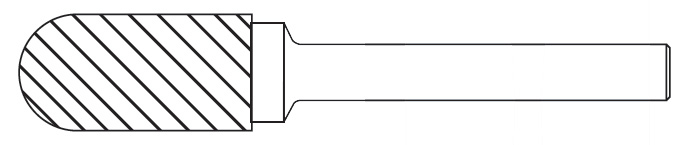

Cylindrical Ball

Tungsten Carbide Rotary Burrs - Cylindrical Ball
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
B-1 B-1 D 6 15 6
B-2 B-2 D 8 20 6
B-3 B-3 D 10 20 6
B-4 B-4 D 12 20 6
B-5 B-5 D 16 25 6
MB-1   3 15 3

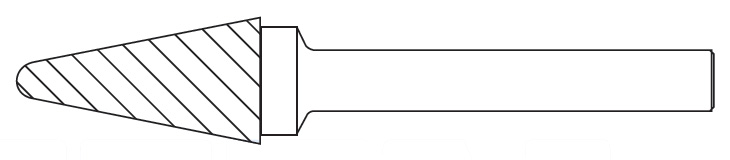

Cone Shape Radius

Tungsten Carbide Rotary Burrs - Cone Shape Radius
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
K-1 K-1 D 10 20 6
K-2 K-2 D 12 20 6
MK-1   3 10 3

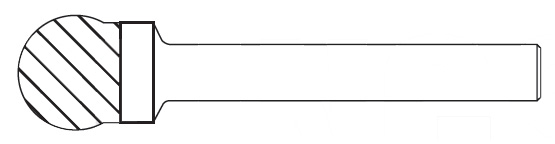

Ball

Tungsten Carbide Rotary Burrs - Ball
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
SHANK DIA
S-1 S-1 D 6 6
S-2 S-2 D 8 6
S-3 S-3 D 10 6
S-4 S-4 D 12 6

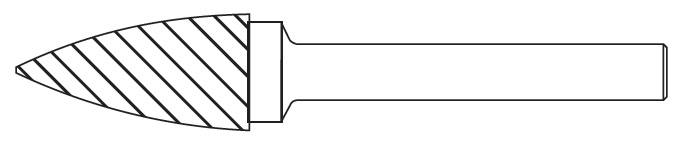

Tree Pointed

Tungsten Carbide Rotary Burrs - Tree Pointed
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
T-1 T-1 D 6 20 6
T-2 T-2 D 10 20 6
T-3 T-3 D 12 25 6
T-4 T-4 D 16 30 6
MT-1   3 15 3

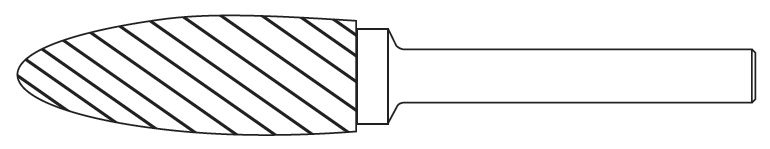

Flame

Tungsten Carbide Rotary Burrs - Flame
STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
F-4 F-4 D 12 24 6

Rim Shape

STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
R-2   19 6 6
R-3   13 10 6

Oval Shape

STANDARD
CUT
CROSS/DIAMOND
CUT
HEAD
DIA
EDGE
LENGTH
SHANK DIA
O-2   13 20 6
O-3   16 25 6
