BT Series Angle Heads (90°)

BT Series Angle Heads (90°)

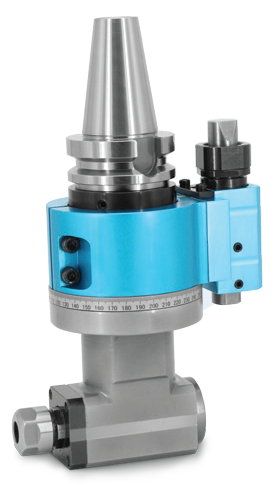

DOLPHIN Right Angle heads offer machining at Right angle from the spindle axis. With heavy duty Bevel Gears DOLPHIN Angle heads provide high accuracy machining at Right angle.
Model   MAX
SPEED
MAX
TORQUE
L Power
BT30/BT40/BT50 ER 16 4500 RPM 1 NM 60/120 1.5 kw
BT30/BT40/BT50 ER 20 4000 RPM 16 NM 50/110 2 kw
BT30/BT40/BT50 ER 25 4000 RPM 32 NM 50/110 3 kw
BT30/BT40/BT50 ER 32 3500 RPM 40 NM 60/130 4 kw
BT30/BT40/BT50 ER 40 3000 RPM 75 NM 70/150 6 kw

BT Power Milling Chucks


Accuracy 0.003mm
BT Power Milling Chucks

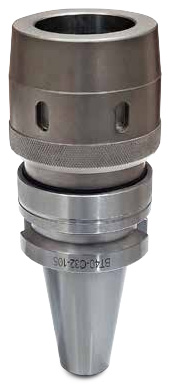

DOLPHIN Power mill chucks offer machining at very high RPM and run out accuracy under 5 microns. Mechanical clamping offers longer Tool life.
Model L L1
BT40 C-20-90L 120 90
BT40 C-32-100L 135 100
BT50 C-32-110L 135 110

BT - SDC Adaptor

BT - SDC Adaptor

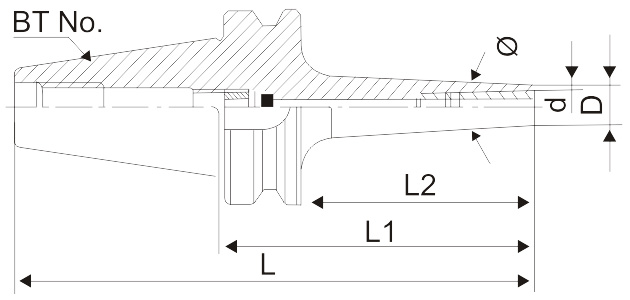

BT - SDC Adaptor - Diagram

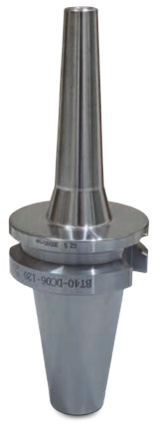

DOLPHIN SDC adaptors are used for High accuracy, die and mould applications. Used for machining in small diameter spaces for high runout accuracy. SDC adaptors offer use of multiple sizes of collet diameter which makes them more desirable over Shrink Fit adaptors.
Model L1 θ D d
BT40-SDC06-120/150 120/150 14 3-6
BT40-SDC08-120/150 120/150 22 3-8
BT40-SDC12-120/150 120/150 34 3-12
BT50-SDC06-120/150 120/150 14 3-6

Sdc Cylindrical Adaptor


Sdc Cylindrical Adaptor

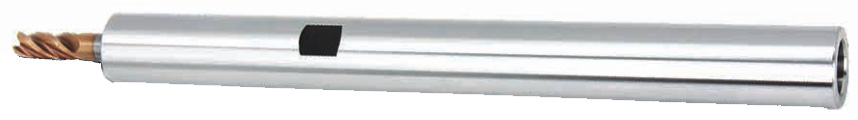

DOLPHIN SDC Cylindrical Adaptor are used for High accuracy, die and mould applications. Made in Cylindrical shank. Used for machining in small diameter spaces.
Model D L
C 16 - SDC 6 - 150 L 16 150
C 20 - SDC6 - 200 L 20 200
C 16 - SDC 8 - 150 L 16 150
C 20 - SDC 8- 200 L 20 200

HSK Series Adaptor

HSK Series Adaptor

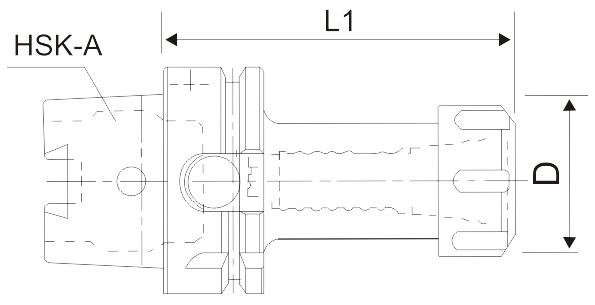

HSK Series Adaptor - Diagram

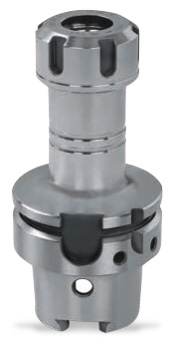

DOLPHIN HSK Adaptors offer high repetition accuracy when clamping to spindle. Suitable for high speed cutting. Fix axial positioning by flat contact surface.
Model D L1
HSK 63A - ER25 42 80
HSK 63A - ER32 50 100
HSK 63A - ER40 63 100
HSK 63A - FMB22 48 50
HSK 63A - FMB27 58 60
HSK 63A - SLA25 90 65
HSK 63A - SLA32 100 72
