Solid Carbide Endmills

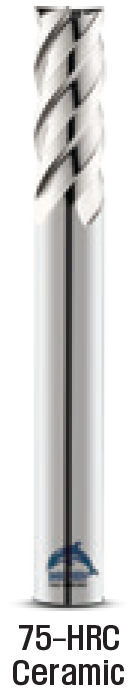

DOLPHIN Solid Carbide Endmills are offered in a variety of HRC grades to suit your individual machining parameters. The geometery and Helix angles of these Endmills are best suited to relevant machining parameters. Finishing, Roughing Endmills and short and long series, for Flat, Ball end and Corner Radius.

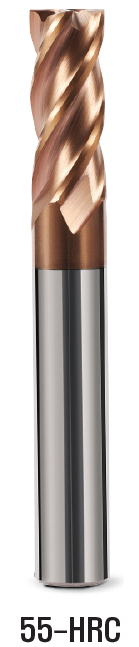

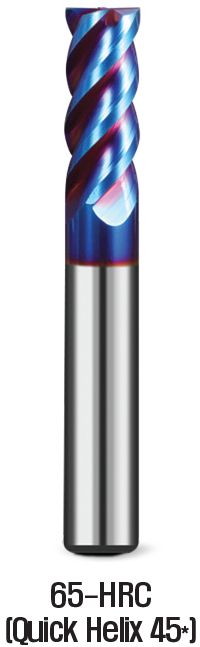

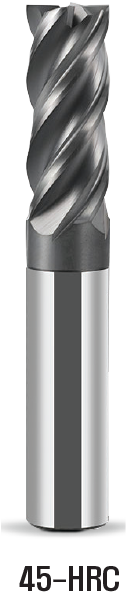

Solid Carbide Endmill

4/2 Fluted Flat, Ball, Corner Radius
***** Flute lengths of the endmill are subject to variations. Dimension given are in mm

DIA	FL	OAL	SHANK
0.2	1	50	4
0.3	1	50	4
0.4	1	50	4
0.5	1	50	4
0.6	1.5	50	4
0.7	1.5	50	4
0.8	1.5	50	4
1	3	50	4
1.5	5	50	4
2	6	50	4/6
2.5	8	50	4
3	15	50	3/4/6
3.5	12	50	4
4	15	50	4/6
4.5	16	50	6
5	13	50	5/6
5.5	19	50	6
6	15	50	6
6.5	20	60	8
7	20	60	8
7.5	20	60	10
8	20	60	8
8.5	25	75	10
9	25	75	10
10	25	75	12
11	25	75	12
12	30	75	14
13	45	100	14
14	45	100	16
15	45	100	16
16	45	100	18
18	45	100	20
20	45	100	22
22	40	100	22
24	40	100	25
25	40	100	25

Download PDF

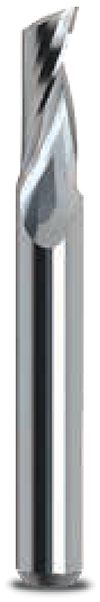

Solid Carbide Single Fluted Endmill

DIA	FL	OAL
3	6	38
4	12	50
5	14	50
6	16	50
8	20	60

Download PDF

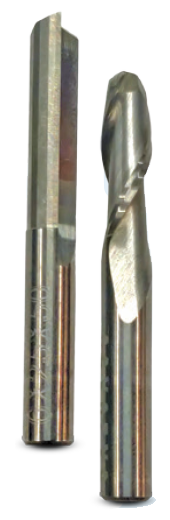

Solid Carbide 2 Fluted Ball/Flat Endmill

DOLPHIN Solid Carbide Two Fluted Flat or Ball end Endmills are more suited for milling on Wood.

DIA	FL	OAL
4	20	50
5	20	50
6	20	50
8	25	60
6	30	100
8	35	100
10	40	100
12	45	100

Download PDF

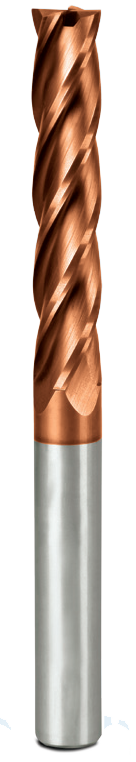

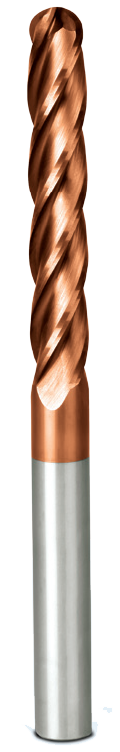

Solid Carbide Long Endmill

DIA	FL	OAL	SHANK
2	12	75	4
3	25	75	3
3	40	100	3
4	25	75	4
4	40	100	4
5	25	75	5
5	40	100	5
6	25	75	6
6	40	100	6
6	70	150	6
8	25	75	8
8	35	100	8
8	70	150	8
10	50	100	10
10	70	150	10
10	70	200	10
12	45	100	12
12	70	150	12
12	70	200	12
14	70	200	14
16	80	150	16
16	80	200	16
18	80	150	18
20	80	150	20
20	85	200	20
25	75	150	25

Download PDF

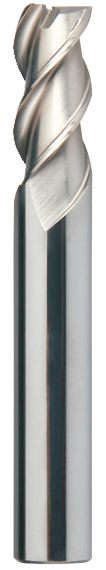

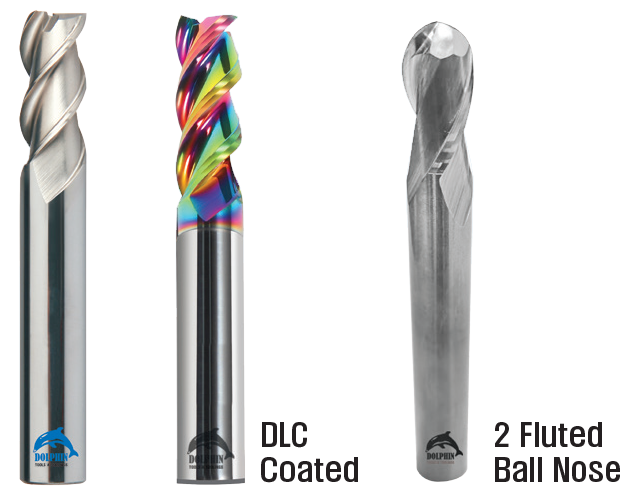

3 Fluted High Heilx - Alluminium flat / corner radius)

DOLPHIN 3 Fluted Aluminum Endmills are made from High helix and extra smooth surface, designed for machining soft non ferrous metals like aluminum. Offered in Flat, Ball End and Corner Radius. They offer optimum results for machining aluminum.

PILOT DIA	BODY DIA	TOTAL	SHANK
3	10	50	3
4	12	50	4
5	15	50	5
6	18	50	6
8	24	60	8
10	30	70	10
12	35	75	12
14	45	100	14
16	45	100	16
20	45	100	20
6	30	100	6
8	35	100	8
10	40	100	10
12	45	100	12
16	80	150	16

Download PDF

Carbide Taper Ball Nose Endmill (2 Fluted)

DOLPHIN Carbide Taper Ball Endmill are used for 3D engraving on wood and Metal.

DIA	X	FL	X	OAL
2-6	X	25	X	50
3-6	X	25	X	50

Download PDF

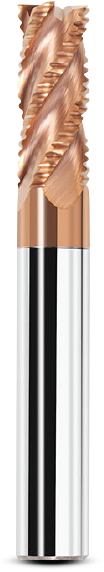

Roughing Endmill 55 HRC

DIA	FL	OAL	SHANK
4	12	50	4
5	13	50	5
6	15	50	6
8	20	63	8
10	25	70	10
12	25	75	12
16	45	100	16
20	45	100	20

Download PDF

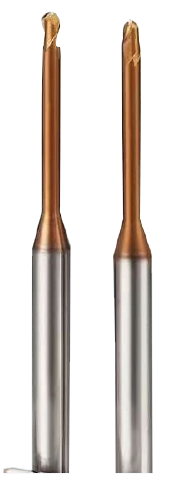

Long Neck Endmill 55 HRC: Flat/Ball

DOLPHIN Long Neck Endmill provided in Flat and Ball End, are best suited for deep groove applications and deep pocket milling.

DIA	NECK L	FL	SHANK	OAL
0.5	8	2	4	50
0.8	10	3	4	50
1	12/16/20	3	4	50
1.5	12/16/20	6	4	50
2	12/16/20	6	4	50
2.5	12/16/20	8	4	50
3	16/20	9	4	50

Download PDF

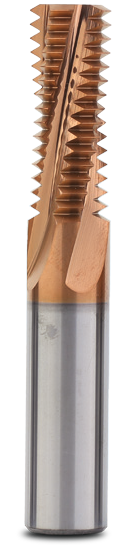

Thread Mill - 55 HRC

Dolphin Thread Mill are ideal for threading hardened steel. With the principal of Interpolation any larger diameters can be threaded which have a similar pitch. Available in Metric, BSP, NPT, UNF and UNC threads.

PITCH	FL	SHANK	OAL	FLUTE

METRIC
5X0.8	10	4	50	3
6X1.0	12	6	60	3
8X1.25	16	6	60	3
10X1.5	20	8	60	3
12X1.75	30	10	75	4
16X2.0	30	12	75	4
20X2.5	40	16	100	4

NPT
1/16"X27	12	6	60	3
1/8"X27	12	6	60	3
1/4"X18	14	8	60	3
3/8"X18	20	10	75	4
1/2"X14	25	16	90	4

BSP
1/16"X28	12	6	60	3
1/8"X28	12	8	60	3
1/4"X19	18	8	60	3
3/8"X19	15	10	75	4
1/2"X14	30	16	90	4
1"X11	35	16	90	4
