Cutting Tools
Brazed Carbide Tips

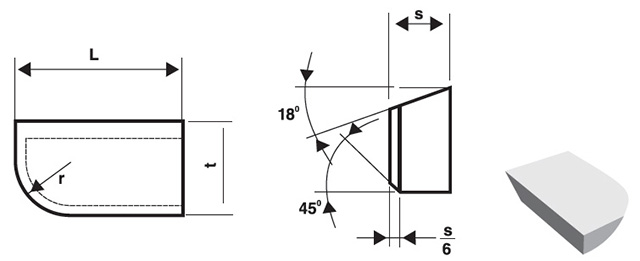

A Type
TYPE
L
t
S
r
A12
12
8
5
5
A16
16
10
6
6
A20
20
12
7
7
A25
25
14
8
8
A32
32
18
10
10
Send Enquiry

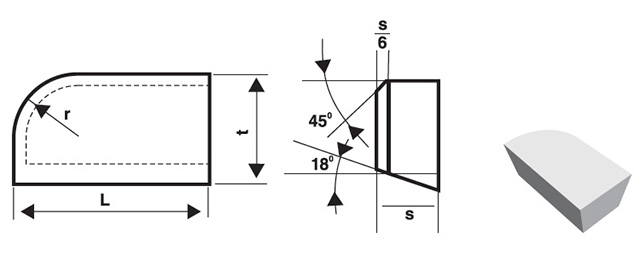

B Type
TYPE
L
t
S
r
B12
12
8
5
5
B16
16
10
6
6
B20
20
12
7
7
B25
25
14
8
8
B32
32
18
10
10
Send Enquiry

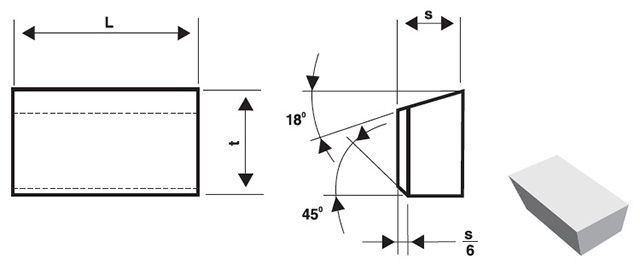

C Type
TYPE
L
t
S
C12
12
8
5
C16
16
10
6
C20
20
12
7
C25
25
14
8
C32
32
18
10
Send Enquiry

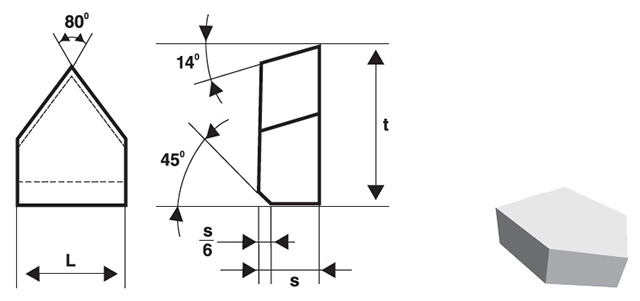

E Type
TYPE
L
t
S
C10
10
18
5
C12
12
20
6
C16
16
22
7
C20
20
25
8
C25
25
28
9
Send Enquiry

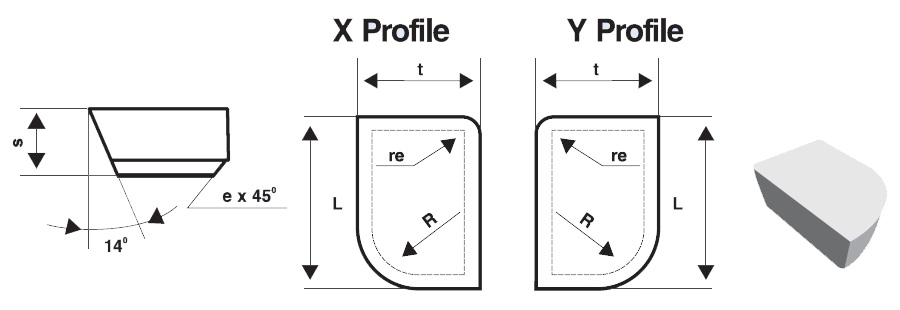

A4 Type
TYPE
L
t
S
R
e
re
Profile
A409
16
10
5.5
10
0.8
1
X
A410
16
10
5.5
10
0.8
1
Y
A411
20
12
7
12.5
0.8
1
X
A412
20
12
7
12.5
0.8
1
Y
A413
25
15
8.5
16
0.8
1
X
A414
25
15
8.5
16
0.8
1
Y
Send Enquiry

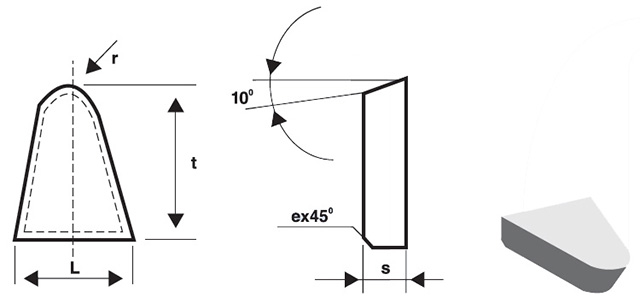

G Type
TYPE
L
t
S
r
G12
12
17
5
2.5
G16
16
20
6
3.5
G20
20
24
6
4.5
G25
25
28
8
6
G32
30
34
10
8
Send Enquiry

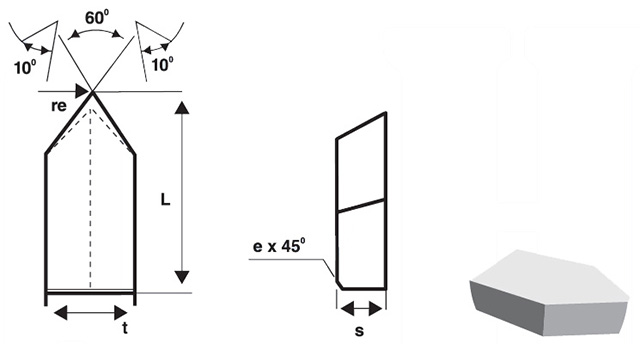

C1 Type
TYPE
L
t
S
re
e
C103
16
6
4
0.5
0.8
C105
20
8
5
0.5
0.8
C107
22
10
6
0.5
0.8
C109
25
12
7
0.8
0.8
Send Enquiry
Tolerance for the related dimension
mm
(L, t, s, R, e, re)
tol.
≤ 6
± 0.2
> 6 ~ 12
± 0.3
> 12 ~ 25
± 0.4
> 25 ~ 40
± 0.60
> 40 ~ 55
± 0.70
> 55
± 1.00
Send Enquiry
Tolerance for the flanks
dim
tol.
dim
tol.
≤ 6
0
> 14 ~ 18
0
-0.5
-1
> 6 ~ 10
0
> 18 ~ 24
0
-0.6
-1.2
> 10 ~ 14
0
> 24 ~ 30
0
-0.8
-1.6
Send Enquiry
Tolerance for flatness
mm
dim
tol.
dim
tol.
≤18
≤0.15
> 30 ~ 40
≤0.25
> 18 ~ 20
≤0.20
> 45
≤0.40
Send Enquiry
Tolerance for angle
mm
dim
tol.
dim
tol.
≤ 30°
± 1°
> 30°
±2°
Send Enquiry
Density g/cm2: 14.5 - 14.9 | Min. bending strength N/cm2: 2580 | Min. Hardness HEA: 89.5Recognition Application: For semi-finishing of cast iron, non-ferrous metals and their alloys, and non-metalic materials at medium cutting speed.
