Nuts and Spanners

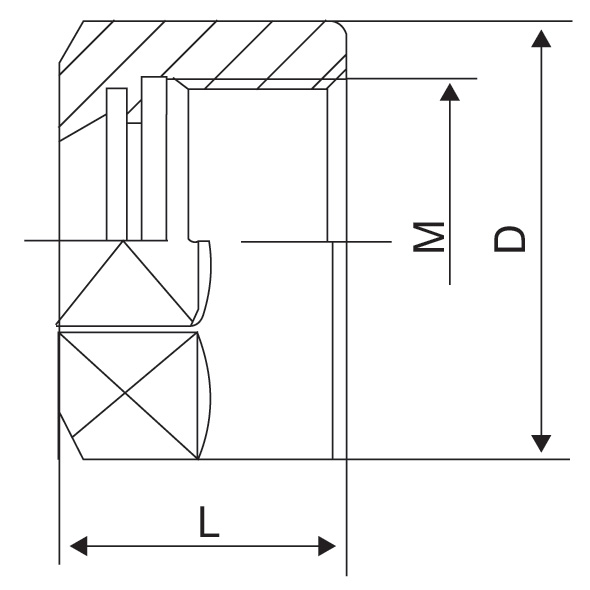

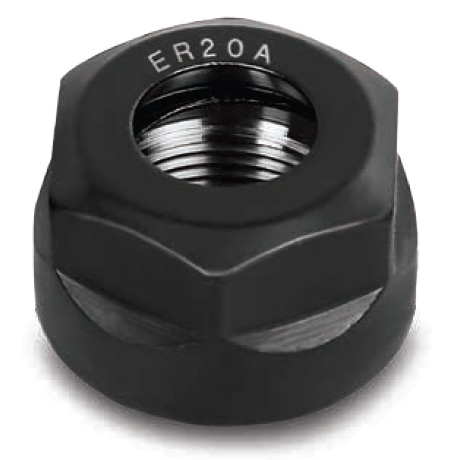

A Type (HEX) Nuts
| MODEL |
L |
D |
M |
| ER8A |
11 |
14 |
M10 X 0.75 |
| ER11A |
11.3 |
19 |
M14 X 0.75P |
| ER16A |
17.5 |
28 |
M22 X 1.5P |
| ER20A |
19 |
34 |
M25 X 1.5P |
| ER25A |
20 |
42 |
M32 x 1.5P |

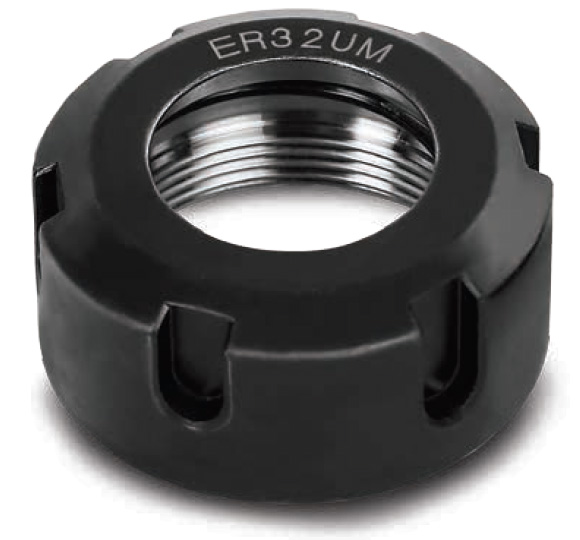

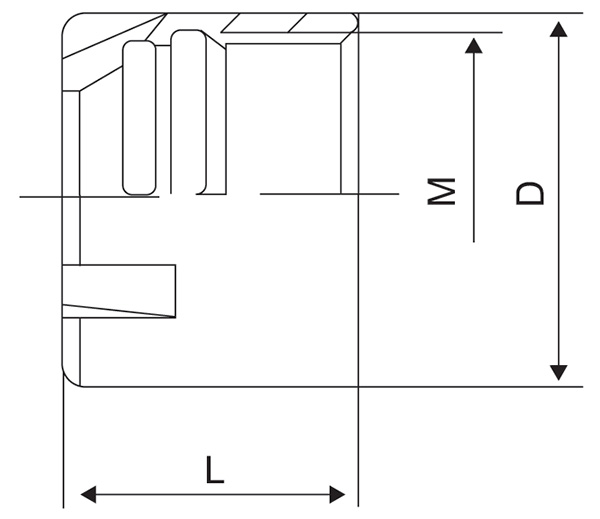

ER - UM Nuts
| MODEL |
L |
D |
M |
| ER16UM |
20 |
32 |
M20 X 1.5P |
| ER20UM |
20 |
32 |
M24 X 1.5P |
| ER25UM |
20 |
42 |
M32 X 1.5P |
| ER32UM |
22.5 |
50 |
M40 X 1.5P |
| ER40UM |
25.5 |
63 |
M50 X 1.5P |
| ER50UM |
36 |
70 |
M64 X 2.0P |

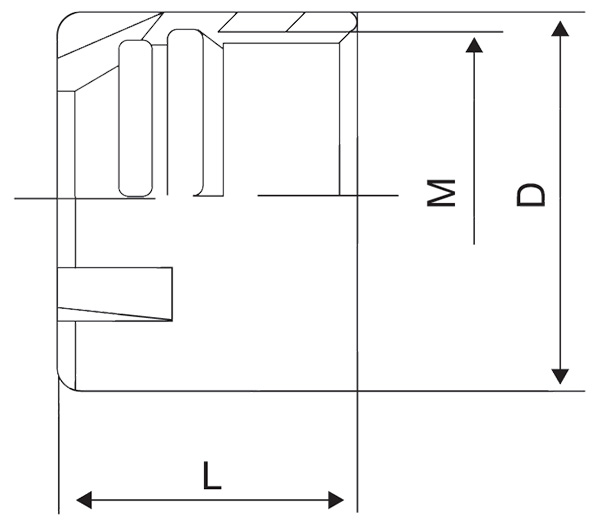

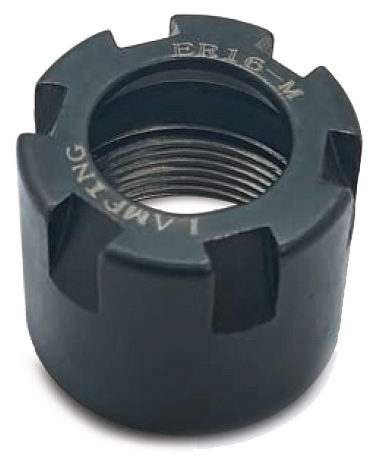

ER - M Nuts
| MODEL |
L |
D |
M |
| ER8M |
10 |
12 |
10 X 0.75P |
| ER11M |
12 |
16 |
M13 X 0.75P |
| ER16M |
18 |
22 |
M19 X 1.0P |
| ER20M |
19 |
28 |
M24 X 1.0P |

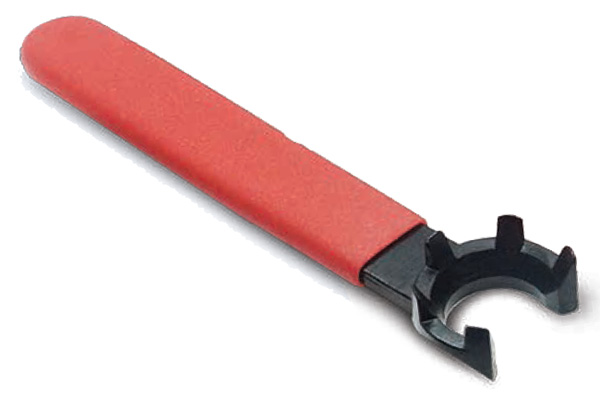

ER (M) - Spanners
| Model of Spanners |
Type of nuts |
| ER8M |
ER8M |
| ER11M |
ER11M |
| ER16M |
ER16M |
| ER20M |
ER20M |

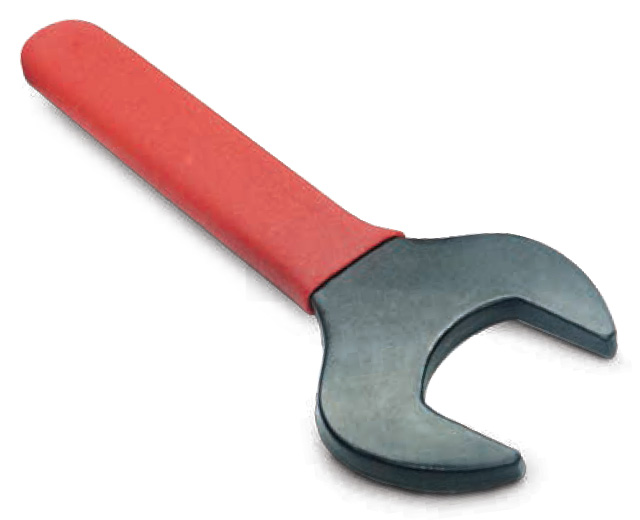

ER (A / Hex) - Spanners
| Model of Spanners |
Type of nuts |
| ER8A |
ER8A |
| ER11A |
ER11A |
| ER16A |
ER16A |
| ER20A |
ER20A |
| ER25A |
ER25A |

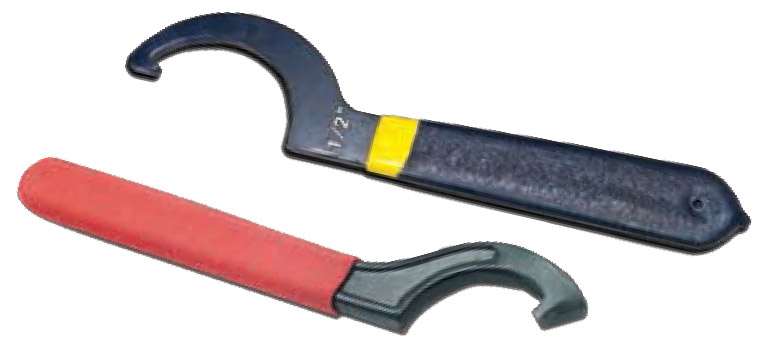

C - Spanners For Keyless Chucks
| Model of Spanners |
Type of Chuck |
| C-ER25 |
1/2" Light |
| C-ER32 |
1/2" Heavy |
| C-ER40 |
5/8", 3/4", Heavy |
| APU-13 |
APU-13 |

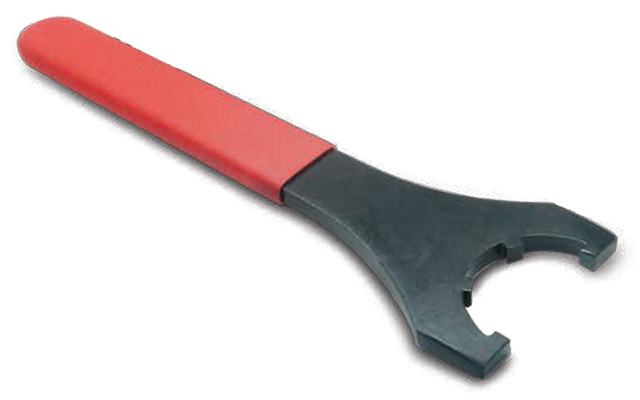

ER (UM) - Spanners
| Model of Spanners |
Type of nuts |
| ER16 |
ER16UM |
| ER20 |
ER20UM |
| ER25 |
ER25UM |
| ER32 |
ER32UM |
| ER40 |
ER40UM |
| ER50 |
ER50UM |
