Toolings
Drill Chucks / Keyless Chucks

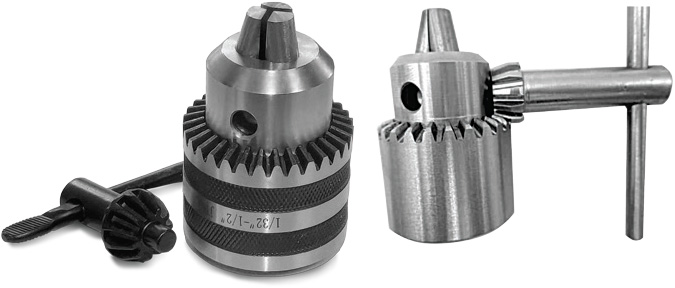

Key Type Drill Chuck
| Size |
Range |
Taper |
| 1/2" (13MM) |
1-13MM |
JT-6 |
| 3/4" (20MM) |
3-20MM |
JT-3 |

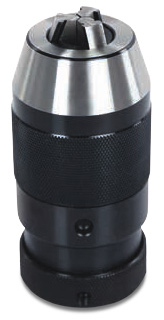

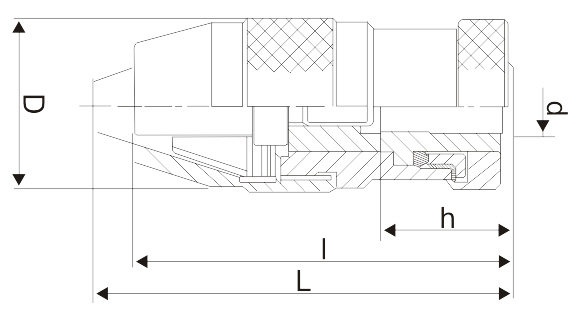

Keyless Drill Chuck
| Model |
Capacity |
Taper |
d |
h |
D |
L |
I |
| 1/4" / 6MM |
0.5-6MM |
JT1 |
10 |
14.5 |
35 |
67 |
61 |
| 3/8" / 10MM |
1-10MM |
JT2 |
12 |
18.5 |
42 |
86 |
78 |
| 1/2" / 13MM LIGHT |
1-13MM |
JT6 |
17.17 |
21 |
44 |
86 |
76 |
| 1/2" /13MM HEAVY |
1-13MM |
JT6 |
17.17 |
24 |
48 |
97 |
88 |
| 5/8" / 16MM |
3-16MM |
JT3 |
20.599 |
24 |
52 |
108 |
98 |
| 3/4" / 20MM |
3-20MM |
JT3 |
20.599 |
30.5 |
62 |
128 |
118 |

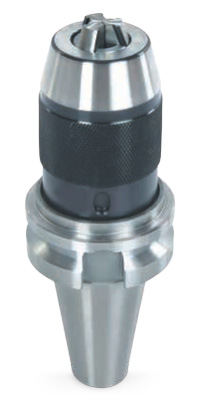

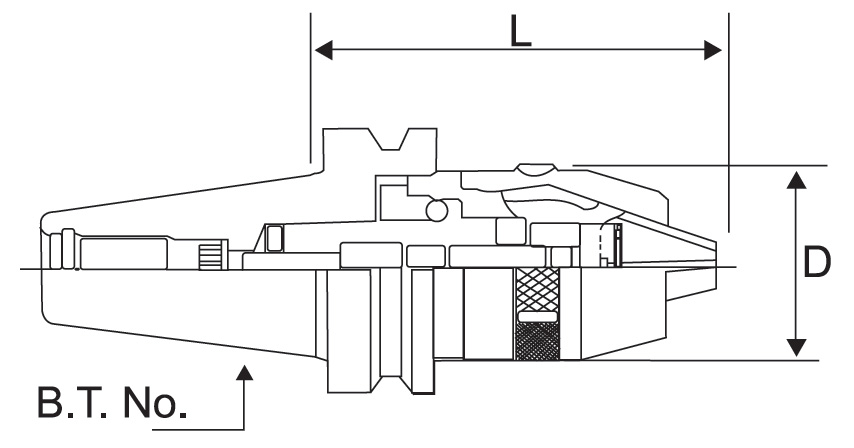

Integrated Keyless Drill Chuck
| Model |
Clamping Range |
D |
L
|
| BT30–APU13 |
1-13MM |
51.5 |
94 |
105 |
| BT40–APU13 |
1-13MM |
51.5 |
98 |
109 |
| BT40–APU16 |
1-16MM |
58 |
115 |
130 |
| BT50–APU13 |
1-13MM |
51.5 |
98 |
109 |
| BT50-APU16 |
1-16MM |
58 |
115 |
130 |

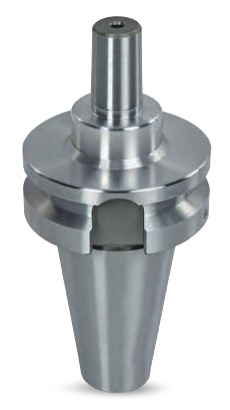

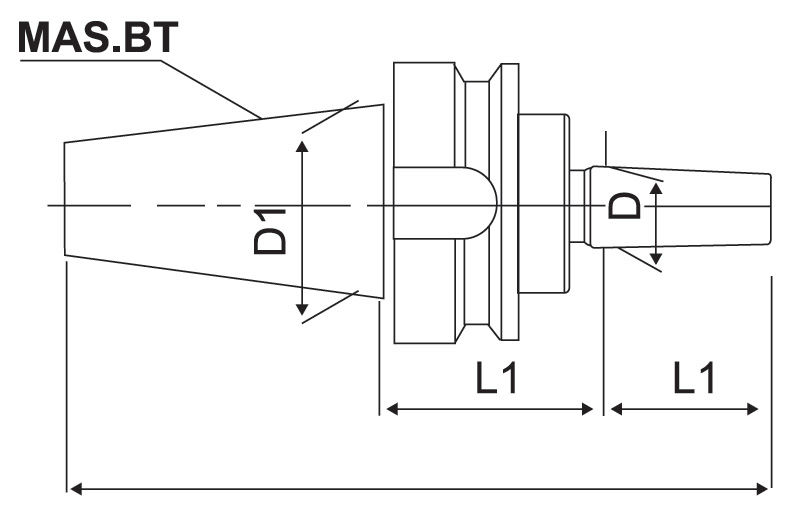

BT Drill Chuck Adaptor
| Model |
L2 |
L |
D |
D1 |
M |
| BT40-JT6 |
22.225 |
132.6 |
14.199 |
44.45 |
M16 |
