Cutting Tools

Solid carbide Reamer / Drill / Taps

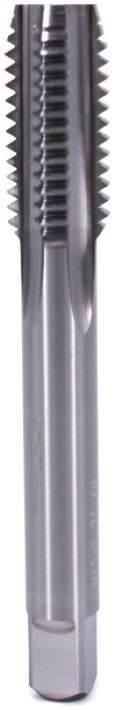

Solid Carbide Threading Taps

Solid Carbide Threading Taps

SIZE	UNC
M 2 X 0.4	1/4"
M 2.5 X 0.45
M 3 X 0.5	5/16"
M 4 X 0.7	3/8"
M 5 X 0.8	7/16"
M 6 X 1.0	1/2"
M 8 X 1.25	5/8"
M 10 X 1.5
M 12 X 1.75
M 14 X 2.0
M 16 X 2.0
M 20 X 2.5

Solid Carbide Reamer

Solid Carbide Reamer

DIA	FL	OAL
2	25	50
2.5	25	50
3	25	60
4	25	60
5	25	60
6	25	60
7	30	75
8	30	75
10	30	75
12	30	75

Solid Carbide Spot Drill: 60°/90°

Solid Carbide Spot Drill: 60°/90°

DIA	LENGTH
4 mm	50
6 mm	50
8 mm	60
10 mm	75
12 mm	75

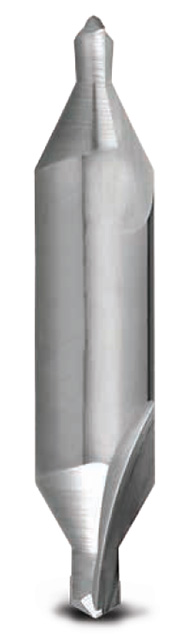

Solid Carbide Centre Drill

Solid Carbide Centre Drill

PILOT DIA	BODY DIA	TOTAL L
1	3.15	35
1.25	3	35
1.6	4	50
2	5	50
2.5	6.3	60
3.15	8	60
4	10	65
5	12.5	70
6.3	16	70

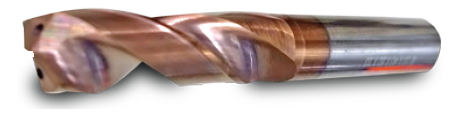

Through Coolant Drill (55 Hrc)

Through Coolant Drill (55 Hrc)

DIA	FLUTE	OAL	SHANK
8	40	80	8
8.2	40	80	10
8.5	40	80	10
9	40	80	10
9.5	40	80	10
10	40	80	10
10.2	55	105	12
10.5	55	105	12
11	55	105	12
11.5	55	105	12
12	55	105	12
12.5	65	105	14
13	65	105	14

Solid Carbide T-Slot

Solid Carbide T-Slot

DIA	THICK	SHANK DIA	OAL	NECK DIA	NECK LENGTH
10	1/2/2.5	10	60	5	15
12	3/4	12	60	6	15
16	3/4/5	16	75	8	15

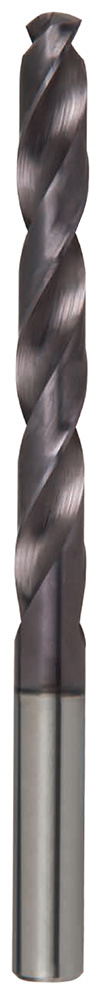

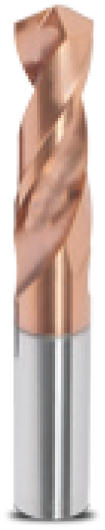

Solid Carbide Drills

Solid Carbide Drills

DIA	FL	OAL
0.8	12	34
0.9	12	34
1	12	34
1.1	18	40
1.2	18	40
1.3	18	40
1.4	18	40
1.5	18	40
1.6	18	40
1.8	18	40
2	24	49
2.1	30	57
2.2	30	57
2.3	30	57
2.4	30	57
2.5	30	57
2.6	35	65
2.7	35	65
2.8	35	65
2.9	35	65
3	35	65
3.1	35	65
3.2	35	65
3.3	35	65
3.4	35	65
3.5	35	65
3.6	35	65
3.7	35	65
3.8	35	65
4.0	35	65
4.1	40	75
4.2	40	75
4.3	40	75
4.4	40	75
4.5	40	75
4.6	40	75
4.7	40	75
4.8	40	75
4.9	40	75
5.0	40	75
5.1	40	75
5.2	40	75
5.3	40	75
5.4	40	75
5.5	40	75
5.6	40	75
5.7	40	75
5.8	40	75

DIA	FL	OAL
5.9	40	75
6.0	40	75
6.1	60	100
6.2	60	100
6.3	60	100
6.4	60	100
6.5	60	100
6.6	60	100
6.7	60	100
6.8	60	100
6.9	60	100
7	60	100
7.1	60	100
7.2	60	100
7.3	60	100
7.4	60	100
7.5	60	100
7.6	60	100
7.7	60	100
7.8	60	100
7.9	60	100
8.0	60	110
8.1	60	110
8.2	60	110
8.3	60	110
8.4	60	110
8.5	60	110
8.6	60	110
8.7	60	110
8.8	60	110
8.9	60	110
9.0	60	110
9.5	60	110
10.0	65	110
10.2	65	110
10.5	65	110
10.8	65	110
11	65	110
11.5	65	110
12	65	110
12.5	60	110
13	60	110
14	60	110
15	60	110
16	60	110
18	60	110
20	60	110
