Cutting Tools

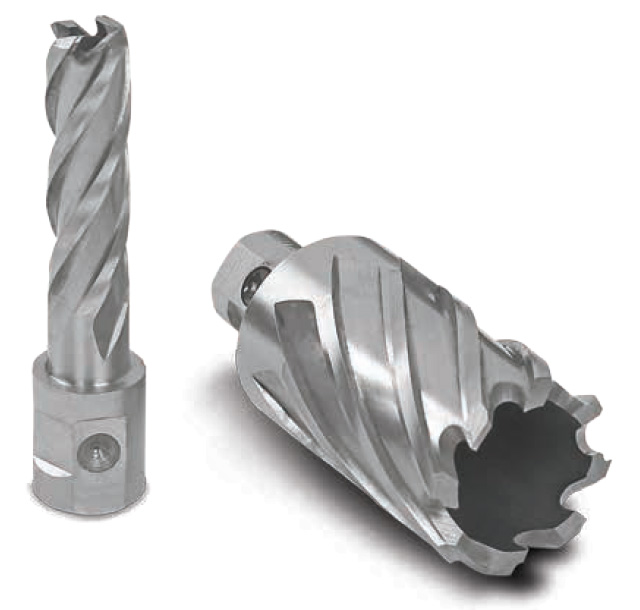

Annular Core Cutter
One Touch Shank
HSS E Cobalt
Cutting Depth 50 mm

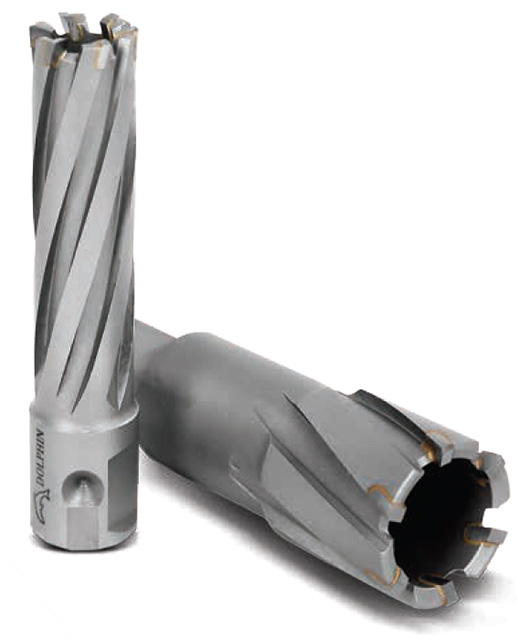

Carbide Tipped
Cutting Depth 50 mm

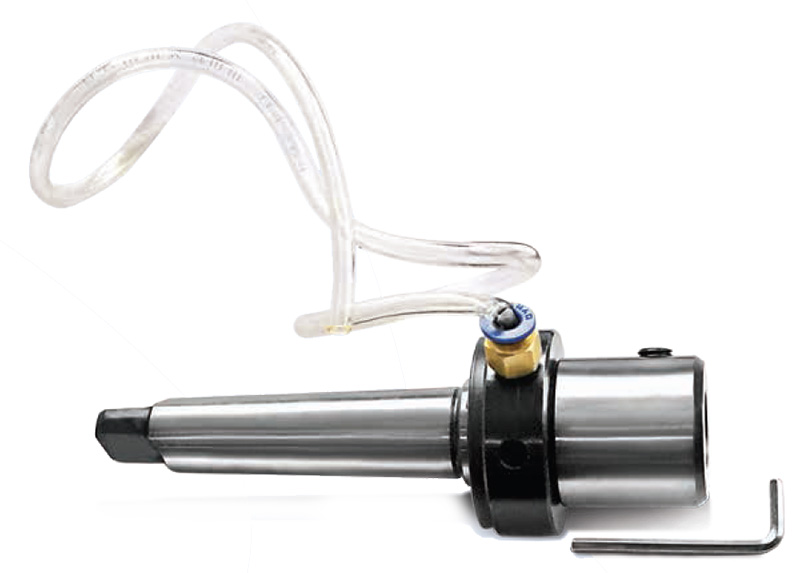

Adaptor
MT-3 (14-60 mm)

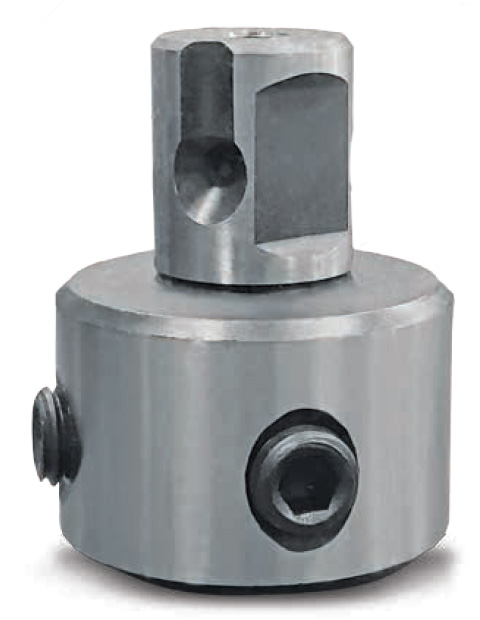

Conversion Shank
Weldon to One Touch
HSS Counter Bore(Parallel Shank)
| SIZE |
PILOT DIA |
CUTTER DIA |
SHANK DIA |
LENGTH |
| 5 |
5.2 |
8.9 |
6 |
80 |
| 6 |
6.2 |
10.4 |
8 |
80 |
| 8 |
8.2 |
13.4 |
10 |
100 |
| 10 |
10.3 |
16.8 |
12 |
100 |
| 12 |
12.3 |
18.8 |
12 |
100 |
Counter Sink (3 Fluted)
90° Straight Shank
| DIA |
SHANK DIA |
TOTAL LENGTH |
| 8 |
6 |
50 |
| 10 |
6 |
50 |
| 12 |
8 |
56 |
| 16 |
10 |
60 |
| 20 |
10 |
65 |
| 25 |
10 |
70 |
| 31 |
12 |
70 |
| 40 |
16 |
80 |
Shank Type Radius Cutter
| RADIUS |
DIA |
SHANK DIA |
TOTAL LENGTH |
| R-2 |
10 |
10 |
60 |
| R-3 |
12 |
12 |
60 |
| R-4 |
14 |
12 |
65 |
| R-5 |
16 |
12 |
65 |
| R-6 |
20 |
16 |
70 |
| R-8 |
24 |
20 |
80 |
| R-10 |
28 |
25 |
85 |
Step Drill
Straight / Spiral
