Dolphin - ISO series/R-8 M1TR/MT Series Adaptors

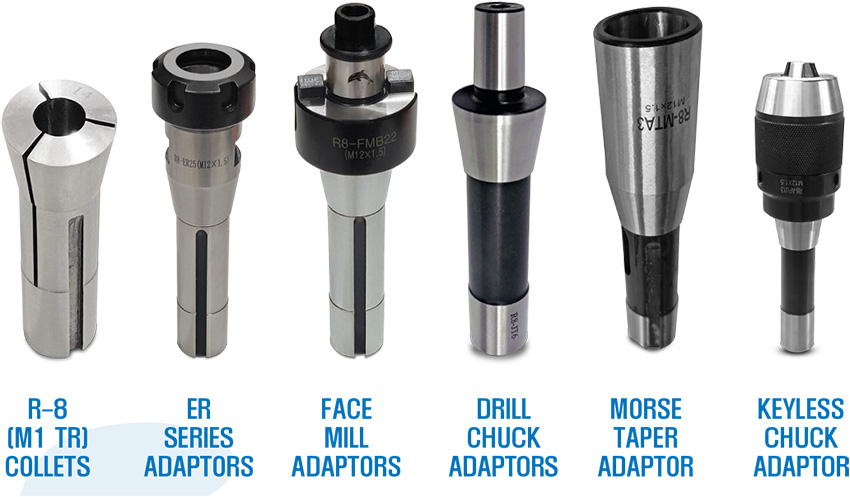

DOLPHIN R-8 Adaptors are suitable for M1TR machines. Available in Face mill, ER collet, Morse taper, Keyless Adaptors.

Model
THREAD PITCH : 12 X 1.5 / M 12 / 7/16 UNF
R-8 (M1 TR) COLLETS	3MM - 20MM
ER SERIES ADAPTORS	ER 16, ER20, ER25, ER32, ER40
FACE MILL ADAPTORS	22, 27, 32, 40
MORSE TAPER ADAPTOR	MT-2/3
DRILL CHUCK ADAPTORS	JT-6
KEY LESS CHUCK ADAPTORS	APU-13

Download PDF

ISO (NT) Series Adaptors

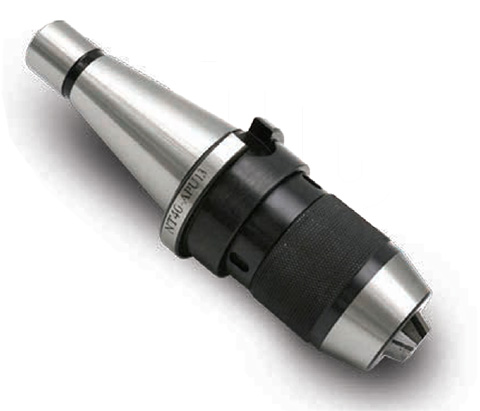

INTEGRATED KEYLESS ADAPTOR

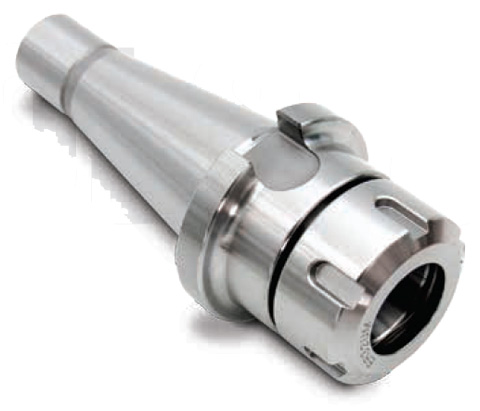

ER SERIES ADAPTORS

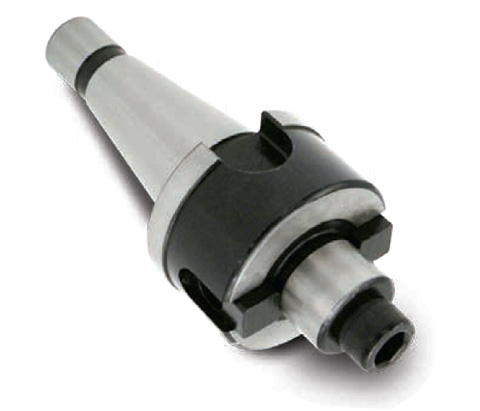

FACE MILL ADAPTORS

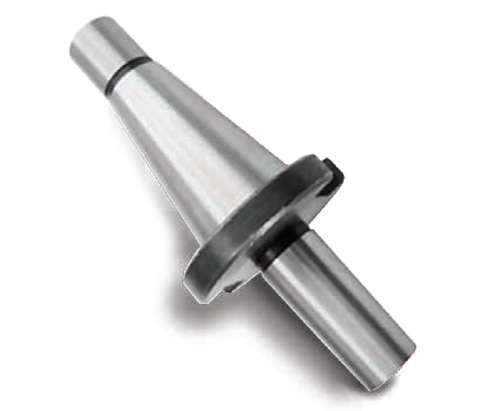

JT-6 ADAPTOR

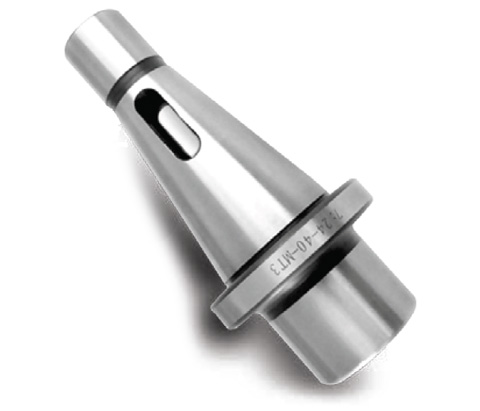

MT REDUCTION ADAPTORS

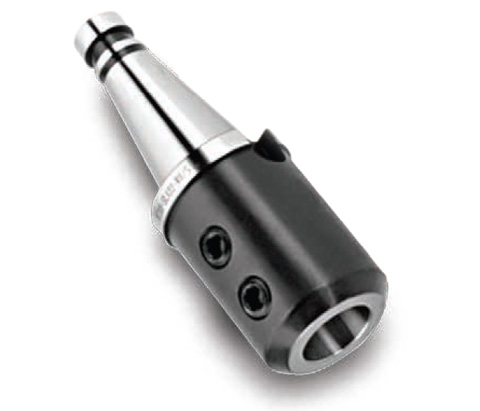

SIDE LOCK ADAPTORS

DOLPHIN ISO Series Adaptors are suitable for ISO / NT series clamping in machines. Available in ER series, face Mill, Side lock, Morse taper and Keyless adaptors.

Model
ISO ( NT ) 30 / 40 /50
ER SERIES ADAPTORS	ER 16, ER20, ER25, ER32, ER40, ER50
FACE MILL ADAPTORS	22, 27, 32, 40
MT REDUCTION ADAPTORS	MT-1, 2, 3
SIDE LOCK ADAPTORS	SLA- 20, 25, 32, 40
INTEGRATED KEYLESS ADAPTOR	APU-13 / 16
JT-6 ADAPTOR	JT-6

Download PDF

MT Series Adaptor

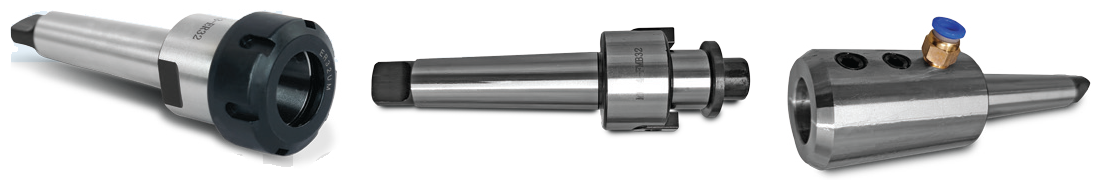

DOLPHIN MT Series Adaptors are suitable for Morse taper Clamping in machines. Available in ER series, face Mill, Side lock Adaptors.

SHANK	ER 16	ER 20	ER 25	ER 32	ER 40	ER 50
MT-2	✔	✔	✔	✔
MT-3	✔	✔	✔	✔	✔
MT-4				✔	✔
MT-5					✔	✔

FMB- 22/27/32

✔
✔

SLA- 25/32/40

✔
✔

Download PDF
