| Cat No. |
|---|
| SP 10-C20 |
| SP 10.5-C20 |
| SP 11.0-C20 |
| SP 11.5-C20 |
| SP 12.5-C20 |
| SP 13.0-C20 |
| SP 13.5-C20 |
| SP 14.0-C25 |
| SP 14.5-C25 |
| SP 15.0-C25 |
| SP 15.5-C25 |
| SP 16.0-C25 |
| SP 16.5-C25 |
| SP 17.0-C25 |
| SP 17.5-C25 |
| SP 18.0-C25 |
| SP 18.5-C25 |
| SP 19.0-C25 |
| SP 19.5-C25 |
| SP 20.0-C25 |
| SP 20.5-C25 |
| SP 21.0-C25 |
| SP 21.5-C25 |
| SP 22.0-C25 |
| SP 22.5-C25 |
| SP 23.0-C25 |
| SP 23.5-C25 |
| SP 24.0-C25 |
| SP 24.5-C25 |
| SP 25.0-C32 |
| SP 25.5-C32 |
| SP 26.0-C32 |
| SP 26.5-C32 |
| SP 27.0-C32 |
| SP 27.5-C32 |
| SP 28.0-C32 |
| SP 28.5-C32 |
| SP 29.0-C32 |
| SP 29.5-C32 |
| SP 30.0-C32 |
| SP 30.5-C32 |
| SP 31.0-C32 |
| SP 31.5-C32 |
| SP 32.0-C32 |
| SP 32.5-C32 |
| SP 33.0-C32 |
| SP 33.5-C32 |
| SP 34.0-C32 |
| SP 35.0-C32 |
| SP 36.0-C32 |
| SP 37.0-C32 |
| SP 38.0-C32 |
| SP 39.0-C32 |
| SP 40.0-C32 |
| SP 41.0-C32 |
| SP 42.0-C32 |
| SP 43.0-C40 |
| SP 44.0-C40 |
| SP 45.0-C40 |
| SP 46.0-C40 |
| SP 47.0-C40 |
| SP 48.0-C40 |
| SP 49.0-C40 |
| SP 50.0-C40 |
| U DRILLS (D x 2) Size | ||
|---|---|---|
| D | L | d |
| 10 | 20 | 20.0 |
| 10.5 | 21 | |
| 11 | 22 | |
| 11.5 | 23 | |
| 12.5 | 25.0 | |
| 13.0 | 26.0 | |
| 13.5 | 27.0 | |
| 14.0 | 28.0 | 25.0 |
| 14.5 | 29.0 | |
| 15.0 | 30.0 | |
| 15.5 | 31.0 | |
| 16.0 | 32.0 | |
| 16.5 | 33.0 | |
| 17.0 | 34.0 | |
| 17.5 | 35.0 | |
| 18.0 | 36.0 | |
| 18.5 | 37.0 | |
| 19.0 | 38.0 | |
| 19.5 | 39.0 | |
| 20.0 | 40.0 | |
| 20.5 | 41.0 | |
| 21.0 | 42.0 | |
| 21.5 | 43.0 | |
| 22.0 | 44.0 | |
| 22.5 | 45.0 | |
| 23.0 | 46.0 | |
| 23.5 | 47.0 | |
| 24.0 | 48.0 | |
| 24.5 | 49.0 | |
| 25.0 | 50.0 | 32.0 |
| 25.5 | 51.0 | |
| 26.0 | 52.0 | |
| 26.5 | 53.0 | |
| 27.0 | 54.0 | |
| 27.5 | 55.0 | |
| 28.0 | 56.0 | |
| 28.5 | 57.0 | |
| 29.0 | 58.0 | |
| 29.5 | 59.0 | |
| 30.0 | 60.0 | |
| 30.5 | ||
| 31.0 | ||
| 31.5 | ||
| 32.0 | ||
| 32.5 | ||
| 33.0 | ||
| 33.5 | ||
| 34.0 | ||
| 35.0 | ||
| 36.0 | ||
| 37.0 | ||
| 38.0 | ||
| 39.0 | ||
| 40.0 | ||
| 41.0 | ||
| 42.0 | ||
| 43.0 | 40.0 | |
| 44.0 | ||
| 45.0 | ||
| 46.0 | ||
| 47.0 | ||
| 48.0 | ||
| 49.0 | ||
| 50.0 | ||

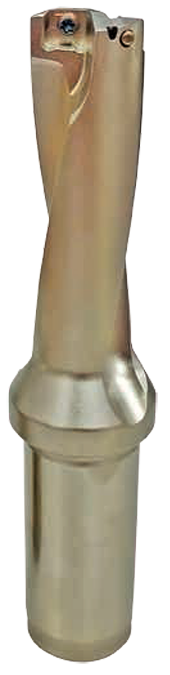

| U DRILLS (D x 3) Size | |
|---|---|
| L | d |
| 30 | 20.0 |
| 31.5 | |
| 33 | |
| 34.5 | |
| 37.5 | |
| 39.0 | |
| 40.5 | |
| 42.0 | 25.0 |
| 43.5 | |
| 45.0 | |
| 46.5 | |
| 48.0 | |
| 49.5 | |
| 51.0 | |
| 52.5 | |
| 54.0 | |
| 55.5 | |
| 57.0 | |
| 58.5 | |
| 61.5 | |
| 63.0 | |
| 64.5 | |
| 66.0 | |
| 67.5 | |
| 69.0 | |
| 70.5 | |
| 72.0 | |
| 73.5 | |
| 75.0 | |
| 76.5 | |
| 78.0 | |
| 79.5 | |
| 81.0 | |
| 82.5 | |
| 84.0 | 32.0 |
| 85.5 | |
| 87.0 | |
| 88.5 | |
| 90.0 | |
| 91.5 | |
| 93.0 | |
| 94.5 | |
| 96.0 | |
| 97.5 | |
| 99.0 | |
| 100.5 | |
| 102.0 | |
| 105.0 | |
| 108.0 | |
| 111.0 | |
| 114.0 | |
| 117.0 | |
| 120.0 | |
| 123.0 | |
| 126.0 | |
| 129.0 | 40.0 |
| 132.0 | |
| 135.0 | |
| 138.0 | |
| 141.0 | |
| 144.0 | |
| 147.0 | |
| 150.0 | |

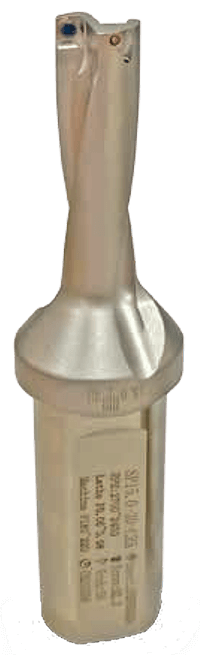

| U DRILLS (D x 4) Size | |
|---|---|
| L | d |
| - | - |
| 50.0 | 20.0 |
| 52.0 | |
| 54.0 | |
| 56.0 | 25.0 |
| 58.0 | |
| 60.0 | |
| 62.0 | |
| 64.0 | |
| 66.0 | |
| 68.0 | |
| 70.0 | |
| 72.0 | |
| 74.0 | |
| 76.0 | |
| 78.0 | |
| 80.0 | |
| 82.0 | |
| 84.0 | |
| 86.0 | |
| 88.0 | |
| 90.0 | |
| 92.0 | |
| 94.0 | |
| 96.0 | |
| 98.0 | |
| 100.0 | 32.0 |
| 102.0 | |
| 104.0 | |
| 106.0 | |
| 108.0 | |
| 110.0 | |
| 112.0 | |
| 114.0 | |
| 116.0 | |
| 118.0 | |
| 120.0 | |
| 122.0 | |
| 124.5 | |
| 126.0 | |
| 128.0 | |
| 130.0 | |
| 132.0 | |
| 134.0 | |
| 136.0 | |
| 140.0 | |
| 144.0 | |
| 148.0 | |
| 152.0 | |
| 156.0 | |
| 160.0 | |
| 164.0 | |
| 168.0 | |
| 172.0 | 40.0 |
| 176.0 | |
| 180.0 | |
| 184.0 | |
| 188.0 | |
| 192.0 | |
| 196.0 | |
| 200.0 | |
| Insert | Clamp Screw | Wrench |
|---|---|---|
| SPMT 04 02 04 |
M2.2 | T6 |
| SPMG 05 02 04 |
M2.5 x 5.5 | T6 |
| SPMG 06 02 04 |
M2.5 x 5.5 | T7 |
| SPMG 07 02 08 |
M2.5 x 8.0 | T8 |
| SPMG 09 04 08 |
M3.5 x 9.0 | T15 |
| SPMG 11 04 08 |
M4.0 x 10.0 | T15 |
| 12 04 08 | M4.0 x 11.0 | T20 |
