Cutting Tools
HSS Milling Cutters

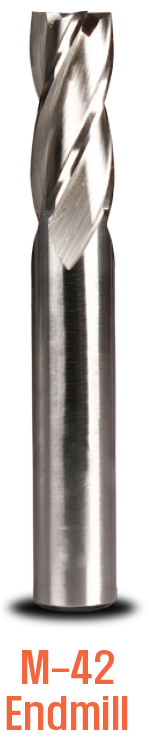

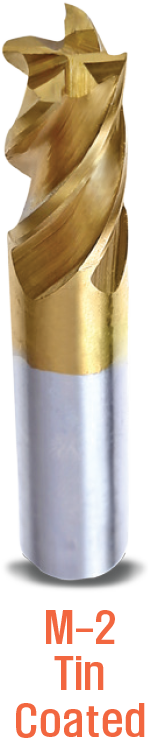

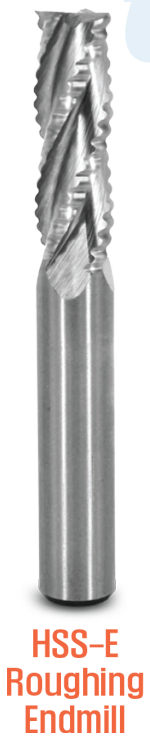

HSS Endmill Cutter (M2 / M42)
2/4/6 Fluted Flat and Ball Nose
Dimession in (mm)
| DIA |
SHANK DIA |
Cutting Length |
Total Length |
| 2 |
4 |
7 |
52 |
| 2.5 |
4 |
7 |
52 |
| 3 |
4 |
8 |
52 |
| 4 |
4 |
8 |
52 |
| 5 |
5 |
13 |
57 |
| 6 |
6 |
13 |
57 |
| 7 |
8 |
19 |
63 |
| 8 |
8 |
19 |
63 |
| 9 |
10 |
22 |
72 |
| 10 |
10 |
22 |
72 |
| 11 |
12 |
26 |
83 |
| 12 |
12 |
26 |
83 |
| 13 |
12 |
26 |
83 |
| 14 |
12 |
26 |
83 |
| 15 |
12 |
26 |
83 |
| 16 |
16 |
32 |
92 |
| 17 |
16 |
32 |
92 |
| 18 |
16 |
32 |
92 |
| 19 |
16 |
32 |
92 |
| 20 |
20 |
38 |
104 |
| 21 |
20 |
38 |
104 |
| 22 |
20 |
38 |
104 |
| 23 |
20 |
38 |
104 |
| 24 |
20 |
45 |
121 |
| 25 |
25 |
45 |
121 |
Available in Long and Extra Long Series
Dimession in (Inch)
| DIA |
SHANK DIA |
Cutting Length |
Total Length |
| 1/8" |
1/4" |
5/16" |
2" |
| 5/32" |
1/4" |
3/8" |
2" |
| 3/16" |
1/4" |
1/2" |
2.1/4" |
| 7/32" |
1/4" |
1/2" |
2.1/4" |
| 1/4" |
1/4" |
1/2" |
2.1/4" |
| 5/16" |
3/8" |
3/4" |
2.1/2" |
| 7/16" |
1/2" |
1" |
3.1/4" |
| 1/2" |
1/2" |
1" |
3.1/4" |
| 5/8" |
5/8" |
1.1/4" |
3.1/4" |
| 3/4" |
5/8" |
1.1/2" |
3.1/2" |
| 1" |
3/4" |
1.3/4" |
3.3/4" |

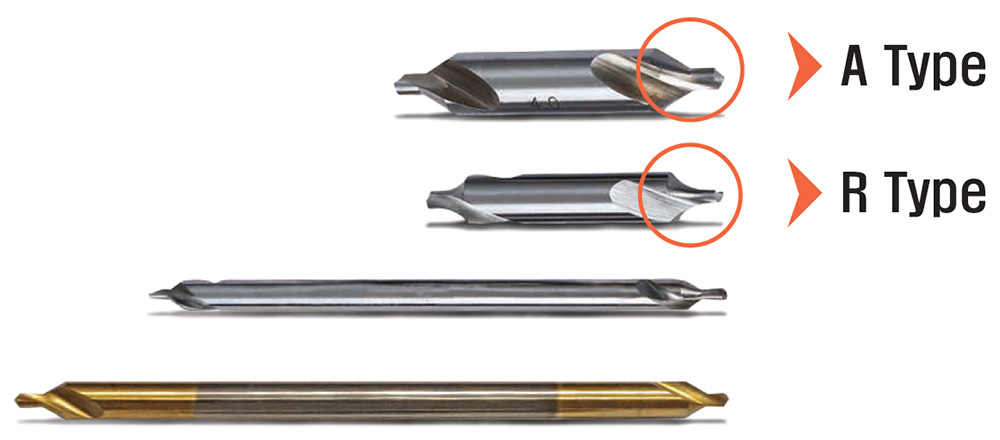

HSS Centre Drill (M2 / M35)
Dimession in (inch)
| SIZE |
PILOT DIA |
BODY DIA |
STANDARD Length |
LONG SERIES |
EXTRA LONG SERIES |
| BS-1 |
3/64" |
1/8" |
1.1/2" |
100MM |
|
| BS-2 |
1/16" |
3/16" |
1.3/4" |
100MM |
|
| BS-3 |
3/32" |
1/4" |
2" |
100MM |
|
| BS-4 |
1/8" |
5/16" |
2.1/4" |
100MM |
150MM |
| BS-5 |
3/16" |
7/16" |
2.1/2" |
100MM |
150MM |
| BS-6 |
1/4" |
5/8" |
3" |
100MM |
150MM |
| BS-7 |
5/16" |
3/4" |
3.1/2" |
100MM |
150MM |
| Dimession in (mm) |
|
|
|
| 2X5 |
2 |
5 |
42 |
100MM |
|
| 2.5X6.3 |
2.5 |
6.3 |
47 |
100MM |
|
| 3.15X8 |
3.15 |
8 |
52 |
100MM |
|
| 4X10 |
4 |
10 |
59 |
100MM |
150MM |
| 5X12.5 |
5 |
12.5 |
66 |
100MM |
150MM |
| 6.3X16 |
6 |
16.0 |
74 |
|
|
| 8X20 |
8 |
20.0 |
83 |
|
|
| 10X25 |
10 |
25.0 |
103 |
|
|

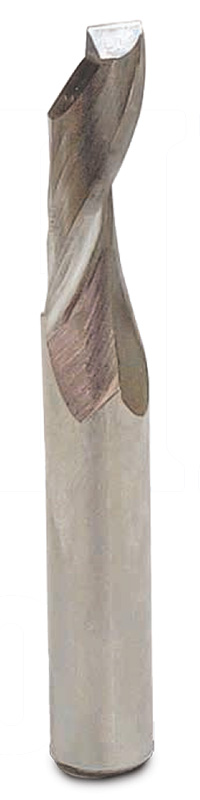

HSS Single Fluted Endmill: M-42 Cobalt
Dimession in (inch)
| DIA |
FlUTE |
TOTAL LENGTH |
SHANK |
| 5 |
20 |
80 |
8 |
| 5 |
20 |
100 |
8 |
| 6 |
20 |
64 |
6 |
| 6 |
25 |
100 |
6 |
| 8 |
20 |
76 |
8 |
| 8 |
25 |
100 |
8 |
| 10 |
25 |
76 |
10 |
| 10 |
35 |
100 |
10 |

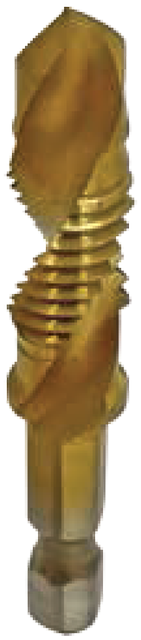

Tap Drill Combined (1/4" Hex Shank)
| SIZE |
DRILL DIA |
Total Length |
| M3 |
2.5 |
55 |
| M4 |
3.3 |
55 |
| M5 |
4.2 |
55 |
| M6 |
5 |
55 |
| M8 |
6.8 |
55 |
| M10 |
8.5 |
55 |
HSS Counter Bore(Parallel Shank)
| SIZE |
PILOT DIA |
CUTTER DIA |
SHANK DIA |
LENGTH |
| 3 MM |
3.2 |
6 |
5 |
42 |
| 4 MM |
3.0 |
4 |
4 |
60 |
| 5 MM |
5.2 |
9 |
6 |
50 |
| 6 MM |
6.2 |
11 |
10 |
60 |
| 8 MM |
8.2 |
14 |
10 |
65 |
| 10 MM |
10.3 |
17 |
12 |
75 |
| 12 MM |
12.3 |
20 |
12 |
80 |

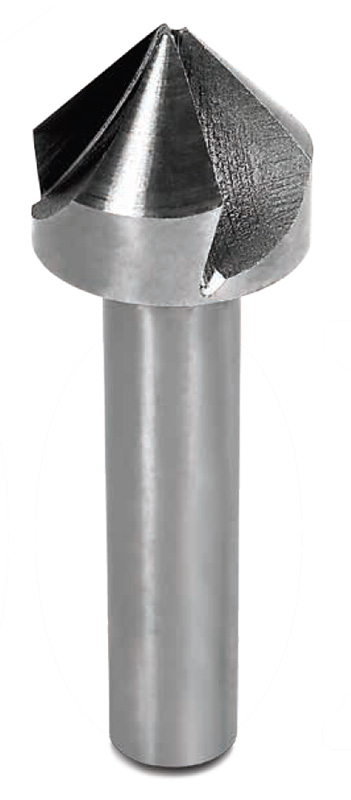

Counter Sink (3 Fluted)
90° Straight Shank
| DIA |
SHANK DIA |
TOTAL LENGTH |
| 8 |
6 |
50 |
| 10 |
6 |
50 |
| 12 |
8 |
56 |
| 16 |
10 |
60 |
| 20 |
10 |
65 |
| 25 |
10 |
70 |
| 31 |
12 |
70 |
| 40 |
12 |
90 |

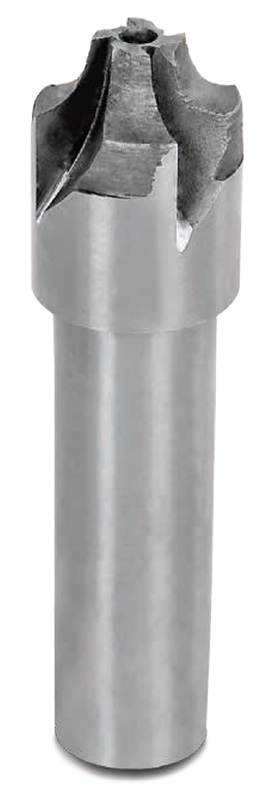

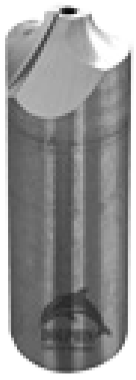

Shank Type Radius Cutter
| RADIUS |
DIA |
SHANK DIA |
TOTAL LENGTH |
| R-2 |
10 |
10 |
60 |
| R-3 |
12 |
12 |
60 |
| R-4 |
14 |
12 |
65 |
| R-5 |
16 |
12 |
65 |
| R-6 |
20 |
16 |
70 |
| R-8 |
24 |
20 |
80 |
| R-10 |
28 |
25 |
85 |

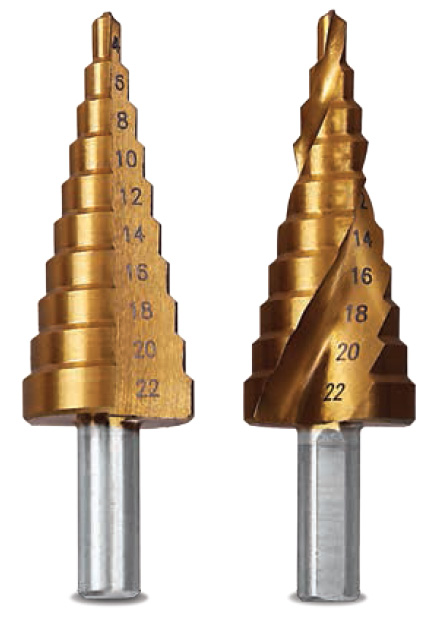

Step Drill
Straight / Spiral
