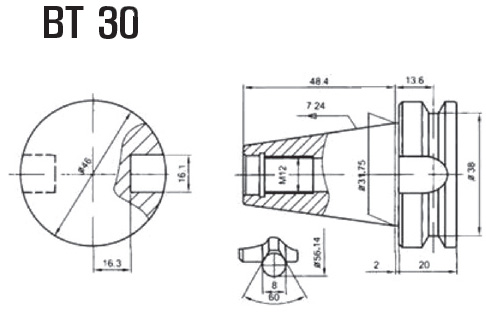

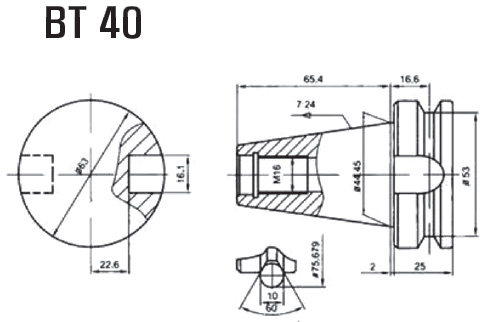

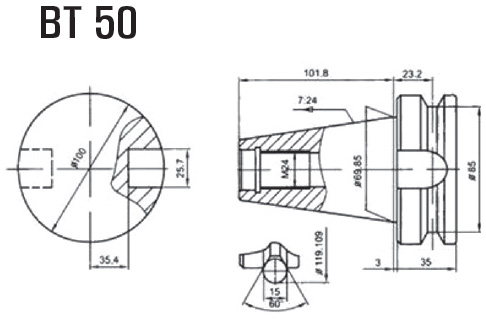

BT series Adaptors

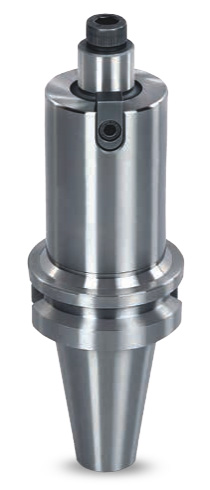

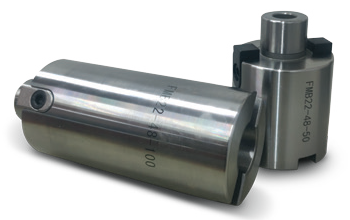

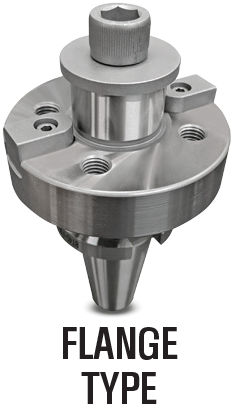

BT - Face / Shell Mill Adaptor
BT - Face / Shell Mill Adaptor

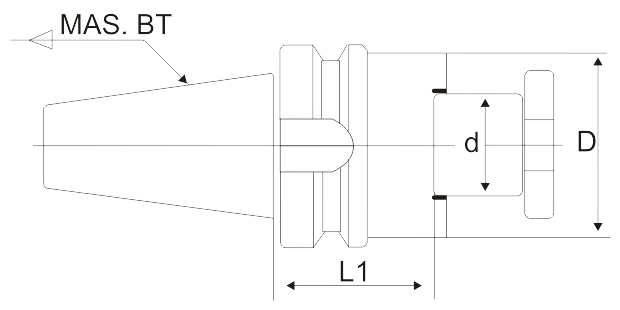

BT - Face / Shell Mill Adaptor - Diagram
Model L1 D d
BT30-FMB22-45 45 50 22
BT30-FMB27-45 45 60 27
BT30-FMB32-60 60 78 32
BT40-FMB16-60/100/150 60/ 100/150 34 16
BT40 - FMB22-60/ 100/ 150/ 200/ 250/ 300 60/ 100/150/ 200/ 250/300 48 22
BT40 - FMB27-60/ 100/150/ 200/ 250/ 300 60/ 100/ 150/ 200/ 250/300 60 27
BT40-FMB32-60/100 /150 60/100/150 78 32
BT40-FMB40-60/100 60/100 89 40
BT50-FMB22-100/ 150/ 200/ 250/ 300/ 400 100/ 150/200/ 250/ 300/ 400 50 22
BT50-FMB27-100/150/ 200/ 250/ 300 100/ 150/200/ 250/ 300 60 27
BT50-FMB32-100/150 100/150 78 32
BT50-FMB40-100/150 100/150 98 40
BT50 - FMB60 - 75 75 - -
PDF - icon Download PDF

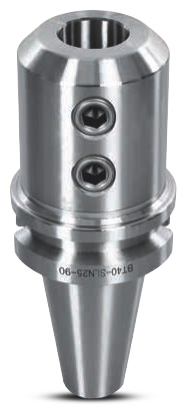

BT - Side Lock Adaptor
BT - Side Lock Adaptor

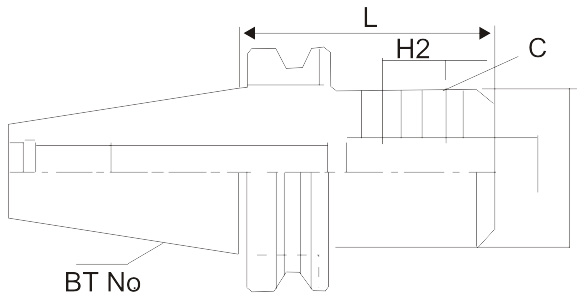

BT - Side Lock Adaptor - Diagram
Model L C
BT30- SLA 16 65 50
BT30-SLA 20 70 52
BT30-SLA 25 90 65
BT40-SLA-10 60 45
BT40-SLA-12 65 45
BT40 - SLA16 65 50
BT40- SLA 20 70 52
BT40 - SLA 22 90 52
BT40 - SLA 25 90 65
BT40- SLA 32 100 72
BT40 - SLA 40 110 90
BT50 - SLA 16 65 50
BT50 - SLA 20 70 52
BT50 - SLA 25 100 65
BT50 - SLA 32 105 72
BT50 - SLA 40 110 90
BT50-SLA 50 120 100
PDF - icon Download PDF
BT - MT (Reduction Socket) Adaptor
BT - MT (Reduction Socket) Adaptor

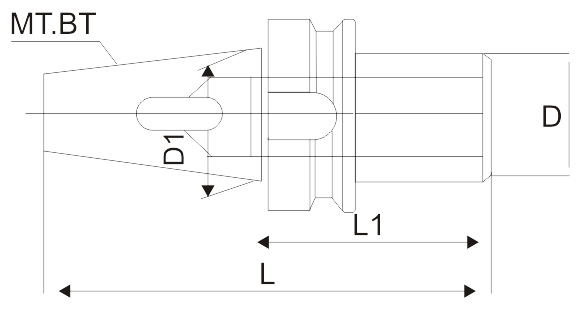

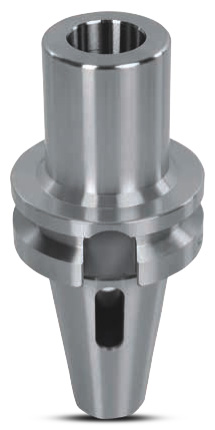

BT - MT (Reduction Socket) Adaptor - Diagram
Model L D D1
BT30-MT1-50 95 25 25
BT30-MT2-60 108.4 32 31.75
BT30-MT3-70 128.4 40 31.75
BT40-MT1- 50 110.4 25 25
BT40-MT2-60 125.4 32 44.45
BT40-MT3-70 135.4 40 44.45
BT40-MT4-90 155.4 48 44.45
BT50-MT2-45 146.8 25 69.85
BT50-MT3-65 166.8 40 69.85
BT50-MT4-85 186.8 48 69.85
PDF - icon Download PDF
